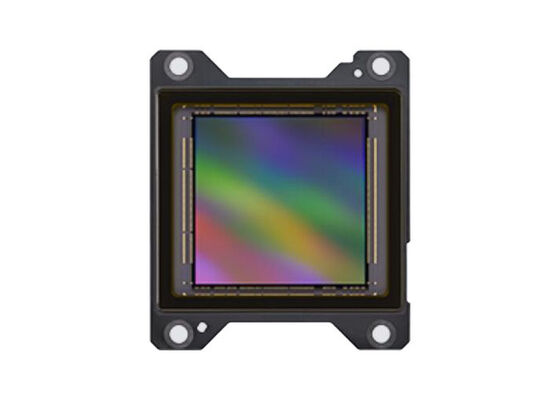

IMX928-AQB CMOS Image Sensor with 68.16 Million Pixels, Global Shutter, and 2.74 μm Pixel Size

IMX928-AQB is a Diagonal 31.9 mm (Type 2.0) CMOS solid-state Image Sensor with Square Pixel for Monochrome Cameras. This sensor features a global shutter with variable charge-integration time and operates with 3.3 V, 2.9 V, 1.1 V, and 1.8 V quadruple power supply. It achieves high sensitivity and low dark current characteristics.

• Image size: 31.9 mm diagonal (2.0 inches)
• Effective pixels: 8,256 (H) × 8,256 (V), approx. 68.16 million pixels
• Pixel size: 2.74 μm (H) × 2.74 μm (V)
• Input frequency: 37.125 MHz / 74.25 MHz
• Supply voltage: 1.1 / 1.8 / 2.9 / 3.3 V
• Shutter mode: Global shutter
• CMOS active pixel type dots
• Built-in timing adjustment circuit, HV driver and serial communication circuit
• Global shutter function
• Variable-shutter speed
• Pulse Output Function
• Monitor output for Integration period (TOUT0) and for internal AD period (TOUT1)
• 8-bit /10-bit / 12-bit Output
• CRA characteristics: The target CRA is 6 degrees at 100% image height
• Ceramic package with connector (floating type)
• Seal glass: both sides processed by AR coating

• FA Cameras
• 3D Vision Cameras
