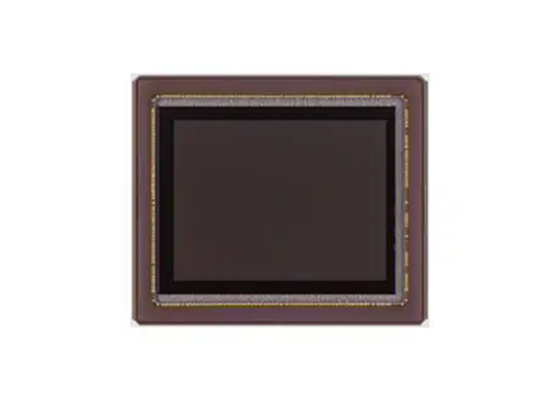

IMX411ALR Sensor IC 151 M Effective Pixels CMOS Image Sensor with 66.7 mm Diagonal Size and 16-bit A/D Converter for Monochrome Cameras

IMX411ALR Sensor IC Diagonal 66.7mm CMOS Image Sensor With Square Pixel For Monochrome Cameras

IMX411ALR is a diagonal 66.7 mm (Type 4.2) CMOS active pixel type image sensor with a square pixel array and 151 M effective pixels. This IC incorporates maximum 36 dB PGA circuit and 16-bit A/D converter. 16-bit digital output makes it possible to readout the signals of 151 M effective pixels at high-speed of 2.0 frame/s in still picture mode.

• Image size: Diagonal 66.7 mm (Type 4.2)
• Total number of pixels: 14304 (H) × 10802 (V) approx. 155 M pixels
• Number of effective pixels: 14208 (H) × 10656 (V) approx. 151 M pixels
• Number of active pixels: 14192 (H) × 10640 (V) approx. 151 M pixels
• Chip size: 60.30 mm (H) × 47.90 mm (V) (include scribe area)
• Unit cell size: 3.76 μm (H) × 3.76 μm (V)
• Optical black: Horizontal (H) direction: Left 44 pixels, right 44 pixels; Vertical (V) direction: Top 38 pixels, bottom 38 pixels
• Package: 598 pin LGA

• Type 4.2 CMOS active pixel type dots
• Input clock frequency 72 MHz
• All-pixel readout mode
• Various readout modes
• Rolling shutter function moving picture mode
• H driver, V driver and serial communication circuit on chip
• +36 dB gain settable by monochrome in CDS/PGA on chip
• Built-in 11-bit/12-bit/14-bit/16-bit A/D converter
• 8 Lane SLVS-EC output
• Back-illuminated type

Digital Still Camera
