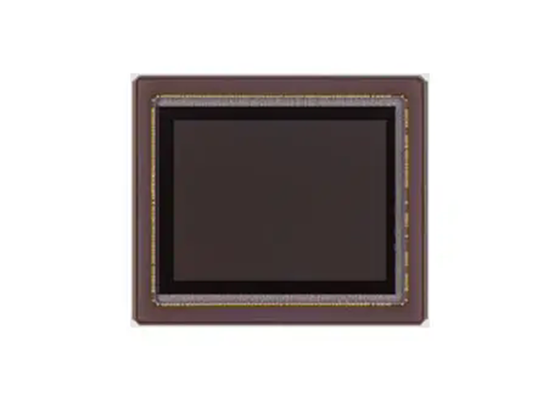

IMX06A-AMR-J 50.3 Mega-pixel CMOS Image Sensor with Back-illuminated Stacked CMOS and High Frame Rate

IMX06A-AMR-J 50.3 Mega-pixel CMOS Image Sensor with Back-illuminated Stacked CMOS and High Frame Rate
IMX06A-AMR-J 50.3 Mega-pixel CMOS Image Sensor with Back-illuminated Stacked CMOS and High Frame Rate

Large Image :  IMX06A-AMR-J 50.3 Mega-pixel CMOS Image Sensor with Back-illuminated Stacked CMOS and High Frame Rate

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX06A-AMR-J
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-234
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX06A-AMR-J 50.3 Mega-pixel CMOS Image Sensor with Back-illuminated Stacked CMOS and High Frame Rate

Description
Part Number: IMX06A-AMR-J Package: LGA-234
Unit Cell Size: 1.60 μm (H) × 1.60 μm (V) Image Size: Diagonal 16.384 Mm (Type 1/0.98)

IMX06A-AMR-J Sensor IC 50.3Mega-Pixel CMOS Image Sensor With Square Pixel For Monochrome Cameras

The IMX06A-AMR-J is a diagonal 16.384 mm (Type 1/0.98) 50.3 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Sony's back-illuminated and stacked CMOS image sensor technology to achieve high-speed image capturing through column parallel A/D converter circuits, along with high sensitivity and low noise imaging through the backside illuminated imaging pixel structure.

It operates with four power supply voltages: analog 2.9 V/1.8 V, digital 0.83 V and 1.8 V or 1.2 V for input/output interface, achieving low power consumption.

Specifications
  • Image size: Diagonal 66.7 mm (Type 4.2)
  • Total number of pixels: 14304 (H) × 10802 (V) approx. 155 M pixels
  • Number of effective pixels: 14208 (H) × 10656 (V) approx. 151 M pixels
  • Number of active pixels: 14192 (H) × 10640 (V) approx. 151 M pixels
  • Chip size: 60.30 mm (H) × 47.90 mm (V) (include scribe area)
  • Unit cell size: 3.76 μm (H) × 3.76 μm (V)
  • Optical black: Horizontal (H) direction: Left 44 pixels, right 44 pixels; Vertical (V) direction: Top 38 pixels, bottom 38 pixels
  • Package: 598 pin LGA
Key Features
  • Back-illuminated and stacked CMOS image sensor
  • Dual PD (Photo Diode)
  • High Frame Rate
  • C-PHY version: Full resolution @30 frames/s
  • D-PHY version: Full resolution @15 frames/s
  • High signal to noise ratio (SNR)
  • Built-in temperature sensor
  • Output video format of RAW10, RAW12
  • Two PLLs for independent clock generation for pixel control and data output interface
  • CSI-2 serial data output
  • MIPI D-PHY 2 lane / 4 lane, Max. 4.5 Gbps/lane, D-PHY specification version 2.1 compliant
  • MIPI C-PHY 2/3 trio, Max. 6.0 Gsps/trio, C-PHY specification version 2.0 compliant
  • 2-wire serial communication (Supports I2C "Fast mode", "Fast-mode Plus", and I3C)
  • Quad HDR function: (Diagonal Binning Quad HDR)
  • 4.0 kbit of OTP ROM for users
