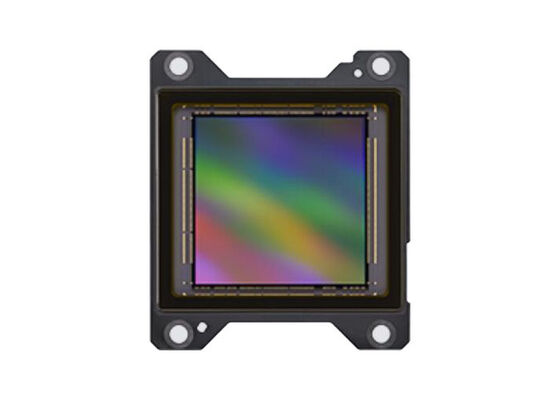

IMX938-AMB Sensor IC Pregius S™ Global Shutter CMOS Image Sensor with 68-Megapixel Resolution and High-Speed Imaging

IMX938-AMB is an industrial-grade global shutter CMOS image sensor from the Pregius S™ series. This monochrome (Mono) version offers 68-megapixel high resolution, high-speed imaging and low noise, and is designed for high-end machine vision and high-speed inspection applications.

• Image size: Diagonal 31.9 mm (2.0 inches)
• Effective pixels: 8,256 (H) × 8,256 (V), approx. 68.16 million pixels
• Pixel size: 2.74 μm (H) × 2.74 μm (V)
• Frame rate (full-pixel output):
  • 8-bit: 70 frames/s
  • 10-bit: 64 frames/s
  • 12-bit: 45 frames/s
• Input frequency: 37.125 MHz / 74.25 MHz
• Supply voltage: 1.1 / 1.8 / 2.9 / 3.3 V
• Shutter mode: Global shutter
• Output interface:
  • SLVS-EC
  • 4.752 / 9.504 / 12.474 Gbps/Lane
  • 2 / 4 / 6 / 8 Lanes
• Filter: Monochrome
• Package: Ceramic package with connectors, 160 pins × 2, dimensions 45 mm (H) × 52 mm (V)

• Pregius S™ Global Shutter: Proprietary back-illuminated pixels deliver motion-free imaging, high dynamic range and low noise, making it ideal for high-speed motion capture.
• High Resolution + High Speed: 68-megapixel resolution and up to 70 fps balance detail and efficiency, reducing inspection times.
• Flexible Readout: Supports Region of Interest (ROI), pixel binning and subsampling to accommodate varying bandwidth and frame rate requirements.
• HDR and High Dynamic Range: Multi-exposure HDR preserves highlights and suppresses shadow noise.
• Industrial-Grade Reliability: Stable performance across a wide temperature range and high resistance to interference, suitable for demanding factory environments.
