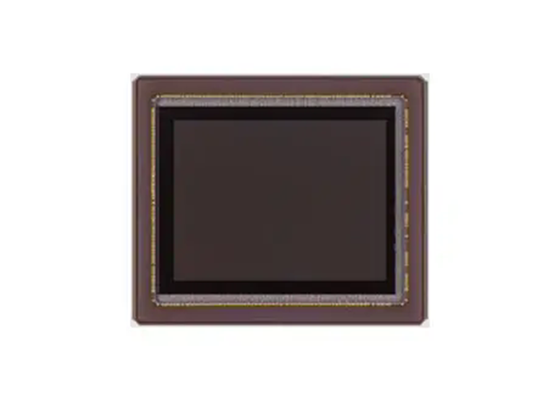

IMX492LLJ CMOS Image Sensor Diagonal 23.1mm with Square Pixel for Monochrome Cameras

The IMX492LLJ is a diagonal 23.1 mm (Type 1.4) CMOS image sensor with a monochrome square pixel array and approximately 47.08 M effective pixels. 12-bit digital output enables high-definition signal output for moving pictures. It operates with three power supply voltages: analog 2.9 V, digital 1.2 V, and 1.8 V for I/O interface, achieving low power consumption. This sensor delivers high sensitivity, low dark current, and features an electronic shutter function with variable storage time.

• CMOS active pixel type pixels
• Input clock frequency 6 to 27 MHz (CSI-2), 72 MHz (SLVS-EC)
• Supports both MIPI Specifications (CSI-2 high-speed serial interface) and SLVS-EC interface
• Multi-Aspect (All pixel, approx. 17:9 and 4:3)
• Readout modes: All-pixel mode, Aspect ratio approx. 17:9, Aspect ratio 4:3
• High sensitivity, low dark current, no smear, excellent anti-blooming characteristics
• Vertical and horizontal arbitrary cropping function
• Variable-speed shutter function (minimum unit: 1 horizontal period)
• Low power consumption
• High dynamic range (HDR) function (4k mode only)
• H driver, V driver and serial communication circuit on chip
• CDS / PGA on chip: Gain +27 dB (step pitch 0.1 dB)
• 10-bit / 12-bit A/D conversion on chip
• All-pixel simultaneous reset supported
• 248-pin high-precision ceramic package
• Recommended lens F number: 2.8 or more (Close side)
• Recommended exit pupil distance: -100 mm to -∞

• FA cameras
• Industrial cameras
