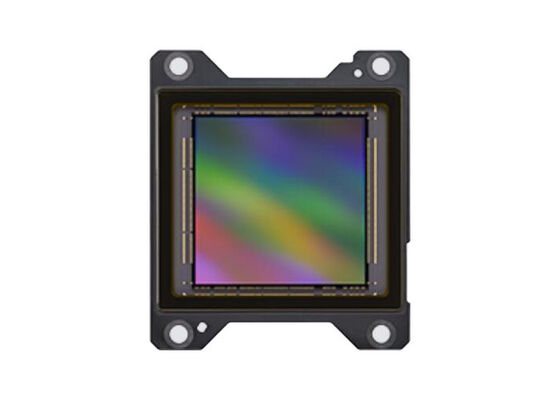

IMX929-AQB Sensor IC 1.8-Inch CMOS Image Sensor with 50.79 Megapixels and 225 fps Global Shutter Using Pregius S Technology

IMX929-AQB is a Pregius S™ stacked back-illuminated global shutter CMOS image sensor in a colour (RGB Bayer) variant, featuring 50.79 megapixels, ultra-high frame rates and low noise, and is designed for high-speed, high-precision machine vision and inspection applications.

• Sensor Technology: Pregius S (Global Shutter, Back-illuminated BSI)
• Effective Pixels: 8224 (H) × 6176 (V), approximately 50.79 megapixels
• Optical Size: Type 1.8-inch (diagonal 28.1 mm)
• Sensor Area: 22.47 mm × 16.86 mm
• Pixel Size: 2.74 μm × 2.74 μm (square pixels)
• Maximum frame rate: 225 fps (8-bit), 201 fps (10-bit), 136 fps (12-bit)
• Shutter type: Global Shutter (exposure time as low as 1 μs)
• Output interface: SLVS-EC (supports 2/4/6/8 lanes, single-channel data rate up to 12.474 Gbps)
• Control Interface: 4-wire SPI
• Supply Voltage: 1.1 V (core), 1.8 V (I/O), 2.9 V (analogue), 3.3 V (interface)
• Package: Ceramic LGA package (45.0 mm × 52.0 mm), with a 2×160-pin connector

• Pregius S™ Global Shutter: Proprietary stacked back-illuminated pixels, delivering no motion blur, high sensitivity, low dark current and low temporal noise.
• High Resolution + Ultra-High Speed: 50.79 megapixels + up to 225 fps, balancing detail capture with production line efficiency.
• Flexible readout: Supports Region of Interest (ROI), pixel binning and subsampling to meet bandwidth and frame rate requirements.
• HDR High Dynamic Range: Multi-exposure HDR ensures no highlight clipping and low noise in shadows.
• Industrial-grade reliability: Wide temperature stability and strong resistance to interference, suitable for harsh factory environments.
