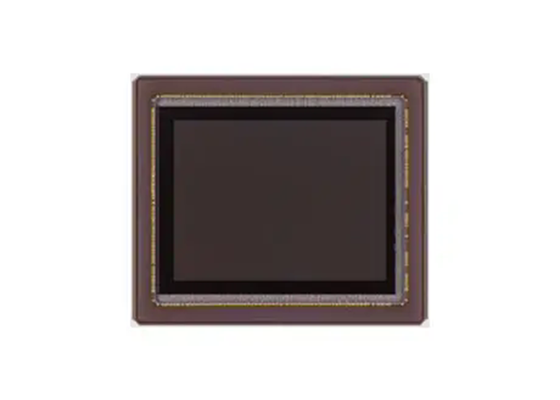

IMX571BLR-J CMOS Image Sensor IC Diagonal 28.3mm with Square Pixel Array and 16-bit A/D Converter for Monochrome Cameras

IMX571BLR-J CMOS Image Sensor IC Diagonal 28.3mm with Square Pixel Array and 16-bit A/D Converter for Monochrome Cameras
IMX571BLR-J CMOS Image Sensor IC Diagonal 28.3mm with Square Pixel Array and 16-bit A/D Converter for Monochrome Cameras

Large Image :  IMX571BLR-J CMOS Image Sensor IC Diagonal 28.3mm with Square Pixel Array and 16-bit A/D Converter for Monochrome Cameras

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX571BLR-J
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-184
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX571BLR-J CMOS Image Sensor IC Diagonal 28.3mm with Square Pixel Array and 16-bit A/D Converter for Monochrome Cameras

Description
Part Number: IMX571BLR-J Package: LGA-184
Unit Cell Size: 3.76 μm (H) × 3.76 μm (V) Image Size: Diagonal 28.3 Mm (Type 1.8)

IMX571BLR-J Sensor IC Diagonal 28.3mm CMOS Image Sensor With Square Pixel For Monochrome Cameras
Product Description

IMX571BLR-J is a diagonal 28.3 mm (Type 1.8) CMOS active pixel type image sensor with a square pixel array and 26.11 M effective pixels. This sensor incorporates maximum 36 dB PGA circuit and 16-bit A/D converter. 16-bit digital output makes it possible to readout the signals of 26.11 M effective pixels at high-speed of 6.84 frame/s in still picture mode. In addition, it realizes 12-bit digital output for high-speed 4K moving picture by window readout mode.

Specifications
Image size Diagonal 28.3 mm (Type 1.8)
Total number of pixels 6280 (H) × 4264 (V) approx. 26.78 M pixels
Number of effective pixels 6252 (H) × 4176 (V) approx. 26.11 M pixels
Number of active pixels 6244 (H) × 4168 (V) approx. 26.02 M pixels
Chip size 27.780 mm (H) × 22.302 mm (V)
Unit cell size 3.76 μm (H) × 3.76 μm (V)
Optical black Horizontal (H) direction: Front 16 pixels, Rear 0 pixel; Vertical (V) direction: Front 22 pixels, Rear 0 pixel
Package 184 pin LGA
Features
  • APS size CMOS active pixel type dots
  • Input clock frequency 72 MHz
  • All-pixel readout mode (+ digital overlap drive)
  • Various readout modes
  • Rolling shutter function moving picture mode
  • H driver, V driver and serial communication circuit on chip
  • +36 dB gain in CDS/PGA on chip (when A/D 16-bit, 14-bit, 12-bit)
  • Built-in 11-bit/12-bit/14-bit/16-bit A/D converter
  • 8 Lane SLVS-EC output
  • Back-illuminated type
Applications
  • Surveillance cameras
  • FA cameras
  • Industrial cameras
