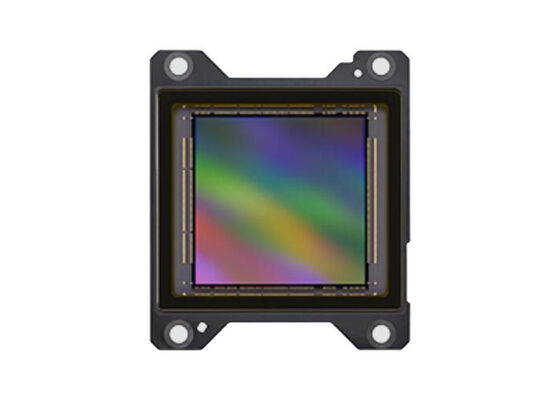

IMX947-AQB 2.5 Inches CMOS Solid-State Image Sensor with 26.37 Million Pixels and Global Shutter

IMX947-AQB is a 2.5-inch CMOS active pixel type solid-state image sensor with a square pixel array and 26.37 M effective pixels. It features a global shutter with variable charge-integration time and operates with a 3.3 V, 2.9 V, 1.1 V, and 1.8 V quadruple power supply. High sensitivity and low dark current characteristics are achieved.

• Image size: 39.7 mm diagonal (2.5 inches)
• Effective pixels: 5,136 (H) × 5,136 (V), approx. 26.37 million pixels
• Pixel size: 5.48 μm (H) × 5.48 μm (V)
• Frame rate (full-pixel output):
  • 8-bit: 423 frames/s
  • 10-bit: 383 frames/s
  • 12-bit: 277 frames/s
• Input frequency: 37.125 MHz / 74.25 MHz
• Supply voltage: 1.1 / 1.8 / 2.9 / 3.3 V
• Shutter mode: Global shutter
• Output interface: SLVS-EC
• Filter: Color
• Package: Ceramic package with connectors, 160 pins × 2, Size 45 mm (H) × 52 mm (V)

• CMOS active pixel type dots
• Built-in timing adjustment circuit, HV driver and serial communication circuit
• Global shutter function
• Input clock frequency 37.125 MHz/74.25 MHz
• Number of recommended recording pixels: 5120 (H) x 5120(V) approx. 26.21M pixels
• Readout modes: All-pixel scan mode, ROI mode, Vertical/Horizontal - Normal/Inverted readout mode
• Maximum frame rate in All-pixel scan mode: 8-bit 423.4 frame/s, 10-bit 383.2 frame/s, 12-bit 277.7 frame/s
• Variable-shutter speed
• Pulse Output Function with monitor output for Integration period (TOUT0) and internal AD period (TOUT1)
• 8-bit / 10-bit / 12-bit Output

• FA Cameras
• 3D Vision Cameras
