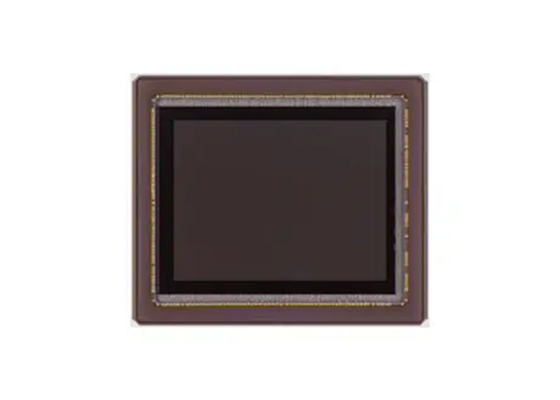

IMX533CLK CMOS Image Sensor IC with Square Pixel Array, 14-bit A/D Converter, and High-Speed Readout for Monochrome Cameras

IMX533CLK CMOS Image Sensor IC with Square Pixel Array, 14-bit A/D Converter, and High-Speed Readout for Monochrome Cameras
IMX533CLK CMOS Image Sensor IC with Square Pixel Array, 14-bit A/D Converter, and High-Speed Readout for Monochrome Cameras

Large Image :  IMX533CLK CMOS Image Sensor IC with Square Pixel Array, 14-bit A/D Converter, and High-Speed Readout for Monochrome Cameras

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX533CLK
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-178
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX533CLK CMOS Image Sensor IC with Square Pixel Array, 14-bit A/D Converter, and High-Speed Readout for Monochrome Cameras

Description
Part Number: IMX533CLK Package: LGA-178
Input Drive Frequency: 72 MHz Image Size: Diagonal 15.968 Mm (Type 1)

IMX533CLK Sensor IC CMOS Image Sensor With Square Pixel For Monochrome Cameras

IMX533CLK is a diagonal 15.968 mm (Type 1) CMOS image sensor with a square pixel array and approximately 9.07 M effective pixels. This sensor incorporates maximum 36 dB PGA circuit and 14-bit A/D converter. 14-bit digital output makes it possible to readout the signals of 9.07 M effective pixels at high-speed of 26.9 frame/s in still picture mode. In addition, it realizes 12-bit digital output at high-speed of 63.6 frame/s.

Specifications
Parameter Value
Image size Diagonal 15.968 mm (Type 1)
Total number of pixels 3015 (H) × 3080 (V) approx. 9.286 M pixels
Number of effective pixels 3011 (H) × 3011 (V) approx. 9.066 M pixels
Number of active pixels 3003 (H) × 3003 (V) approx. 9.018 M pixels
Chip size 15.469 mm (H) × 16.375 mm (V)
Unit cell size 3.76 μm (H) × 3.76 μm (V)
Optical black Horizontal (H) direction: Front 0 pixel, Rear 0 pixel; Vertical (V) direction: Front 12 pixels, Rear 0 pixel
Package 178 pin LGA 20.0 mm (H) × 20.0 mm (V)
Features
  • Type 1 CMOS active pixel type pixels
  • Square 1:1 aspect ratio
  • Input clock frequency 72 MHz
  • All-pixel readout mode
  • Various readout modes
  • Rolling shutter function moving picture mode
  • H driver, V driver and serial communication circuit on chip
  • +36 dB gain in CDS/PGA on chip (when A/D 14-bit, 12-bit)
  • Built-in 11-bit/12-bit/14-bit A/D converter
  • 8 Lane SLVS-EC output, baud rates of 2.304 / 1.152 Gbps per lane are supported
  • Multi Camera Function (chip ID up to six)
  • Gyro data insertion function (Insert data from Gyro IC into frame data)
  • H/V direction inverted readout mode
  • Back-illuminated type
Application

Industrial cameras
