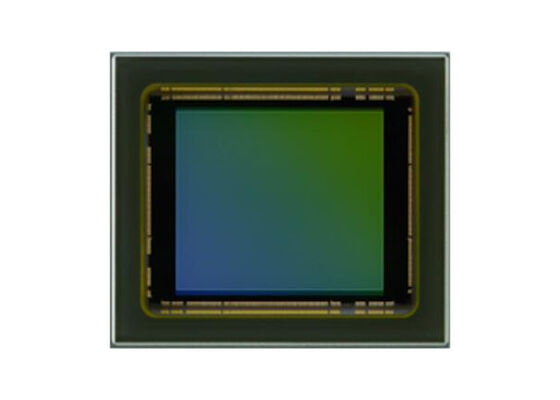

IMX935-AMJ Sensor IC - 19.3mm Diagonal CMOS with 24.55MP Global Shutter for High-Speed Imaging

IMX935-AMJ is a 1.2-inch global shutter CMOS image sensor. This device is part of the Pregius S™ technology family, featuring 24.55 million effective pixels. It achieves high-speed readout of >200 fps whilst maintaining high resolution, and is specifically optimised for industrial machine vision applications with stringent requirements for both speed and accuracy.

• Image size: 19.3 mm diagonal (1.2 inches)
• Effective pixels: 5328 (H) × 4608 (V), approx. 24.55 million pixels
• Pixel size: 2.74 μm (H) × 2.74 μm (V)
• Frame rate (full-pixel output):
  • 8-bit: 225 frames/s
  • 10-bit: 200 frames/s
  • 12-bit: 107 frames/s
• Input frequency: 37.125 MHz / 74.25 MHz
• Supply voltage: 1.1 V, 1.8 V, 2.9 V, 3.3 V
• Shutter mode: Global shutter
• Output interface: SLVS-EC, 8/6/4/2/1 Lane
• Filter: Monochrome
• Package: Ceramic package (LGA)
• Dimensions: 24.5 mm × 21.4 mm

• CMOS active pixel type dots with high-speed processing, high resolution, C-mount support
• Global shutter image sensor
• 1.2-inch, approx. 24.5 megapixels
• High-speed imaging at 24.5MP and 394fps with power efficiency improved by approximately 2x
• Proprietary Pregius S pixel structure enables miniaturisation, compact size and high resolution
• Equipped with advanced interfaces and functions supporting high-speed, high-resolution imaging

• FA Cameras
• 3D Vision Cameras
