IMX335LLN CMOS Image Sensor with 5.14 M Effective Pixels and Type 1/2.8 Image Size for Low Power Monochrome Cameras

IMX335LLN CMOS Image Sensor with 5.14 M Effective Pixels and Type 1/2.8 Image Size for Low Power Monochrome Cameras
IMX335LLN CMOS Image Sensor with 5.14 M Effective Pixels and Type 1/2.8 Image Size for Low Power Monochrome Cameras

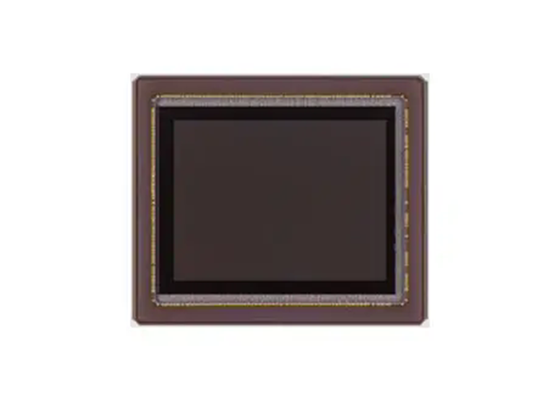

Large Image :  IMX335LLN CMOS Image Sensor with 5.14 M Effective Pixels and Type 1/2.8 Image Size for Low Power Monochrome Cameras

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX335LLN
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: BGA-88
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX335LLN CMOS Image Sensor with 5.14 M Effective Pixels and Type 1/2.8 Image Size for Low Power Monochrome Cameras

Description
Part Number: IMX335LLN Package: BGA-88
Input Frequency: 6 To 27 MHz / 37.125 MHz / 74.25 MHz Image Size: Type 1/2.8

IMX335LLN Sensor IC CMOS Solid-State Image Sensor With Square Pixel For Monochrome Cameras
Product Overview

IMX335LLN is a diagonal 6.52 mm (Type 1 / 2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 5.14 M effective pixels. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and features low power consumption. It achieves high sensitivity, low dark current, and no smear. The chip includes an electronic shutter with variable charge-integration time.

Technical Specifications
  • Image size: Type 1/2.8
  • Total number of pixels: 2704 (H) × 2104 (V) approx. 5.69 M pixels
  • Number of effective pixels: 2616 (H) × 1964 (V) approx. 5.14 M pixels
  • Number of active pixels: 2616 (H) × 1960 (V) approx. 5.13 M pixels
  • Number of recommended recording pixels: 2592 (H) × 1944 (V) approx. 5.04 M pixels
  • Unit cell size: 2.0 µm (H) × 2.0 µm (V)
  • Optical black: Horizontal (H) direction: Front 0 pixel, rear 0 pixel; Vertical (V) direction: Front 13 pixels, rear 0 pixel
  • Dummy: Horizontal (H) direction: Front 0 pixel, rear 0 pixel; Vertical (V) direction: Front 0 pixel, rear 0 pixel
  • Package: 88 pin BGA
Key Features
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Input frequency: 6 to 27 MHz / 37.125 MHz / 74.25 MHz
  • Number of recommended recording pixels: 2592 (H) × 1944 (V) approx. 5.04 M pixels
  • Readout modes: All-pixel scan mode, Window cropping mode, Vertical/Horizontal direction-normal/inverted readout mode
  • Maximum frame rate in All-pixel scan mode: 2592(H) × 1944(V) A/D 10-bit: 60 frame/s
  • High dynamic range (HDR) function: Multiple exposure HDR, Digital overlap HDR
  • Variable-speed shutter function (resolution 1H units)
  • 10-bit / 12-bit A/D converter
  • CDS/PGA function: 0 dB to 30 dB Analog Gain, 30.3 dB to 72 dB Analog + Digital Gain
  • Supports I/O: CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
  • Recommended exit pupil distance: -100 mm to -∞
Applications
  • Surveillance cameras
  • FA cameras
  • Industrial cameras
