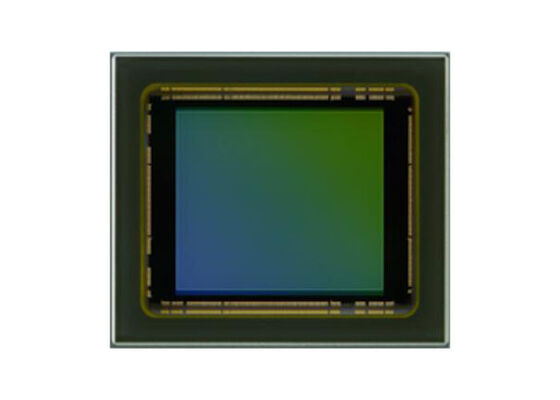

IMX936-AQJ Sensor IC 1/1.1-Inches Global Shutter CMOS Image Sensor For Color Cameras

IMX936-AQJ is a 12.41-megapixel global shutter CMOS image sensor from the Pregius S series, utilizing a stacked back-illuminated (Stacked BSI) process with a 1/1.1-inch optical format. Designed for miniaturization, high speed and high sensitivity, it targets industrial vision, 3D vision and high-speed inspection applications.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Global shutter function
• Input clock frequency 37.125 MHz/74.25 MHz
• Number of recommended recording pixels: 4128 (H) × 3008 (V), approx. 12.41 megapixels
• Readout modes: All-pixel scan mode, 1/2 subsampling mode, H2V2 FD binning mode/H1V2 FD binning mode/H2V1 FD binning mode, ROI mode
• Vertical/Horizontal - Normal/Inverted readout mode
• Variable-shutter speed
• Pulse Output Function
• Monitor output for Integration period (TOUT0) and for internal AD period (TOUT1)
• 8-bit /10-bit / 12-bit A/D converter (Full range)

Suitable for general-purpose machine vision and 3D vision applications.
