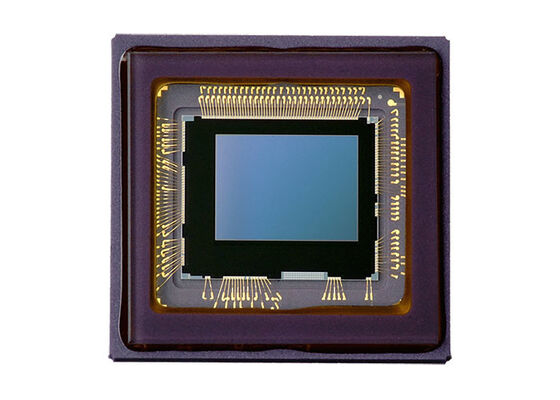

IMX556PLR-C Time-of-Flight Image Sensor with VGA Resolution Low Power Consumption and Back-illuminated Design

IMX556PLR-C Time-of-Flight Image Sensor with VGA Resolution Low Power Consumption and Back-illuminated Design
IMX556PLR-C Time-of-Flight Image Sensor with VGA Resolution Low Power Consumption and Back-illuminated Design

Large Image :  IMX556PLR-C Time-of-Flight Image Sensor with VGA Resolution Low Power Consumption and Back-illuminated Design

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX556PLR-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-136
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX556PLR-C Time-of-Flight Image Sensor with VGA Resolution Low Power Consumption and Back-illuminated Design

Description
Part Number: IMX556PLR-C Package: LGA-136
Unit Cell Size: 10.0 μm (H) × 10.0 μm (V) Image Size: Diagonal 8.0 Mm (Type 1/2)

IMX556PLR-C Sensor IC Diagonal 8.0 mm VGA-Pixel Time-Of-Flight Image Sensor
Product Overview

The IMX556PLR-C is a fully integrated optical Time-of-Flight (ToF) camera sensor featuring 640 × 480 (VGA) time-of-flight pixels. Combined with a modulated light source, this sensor is capable of measuring distance and reflectivity with VGA resolution. The chip operates with analog 2.7 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. The device features CSI-2 serial data outputs.

Specifications
Image size Diagonal 8.0 mm (Type 1/2)
Total number of pixels 642 (H) × 498 (V) approx. 0.319 M pixels
Number of effective pixels 642 (H) × 484 (V) approx. 0.310 M pixels
Number of active pixels 640 (H) × 480 (V) approx. 0.307 M pixels
Unit cell size 10.0 μm (H) × 10.0 μm (V)
Substrate material Silicon
Package 136 pin LGA 15.50 mm (H) × 15.00 mm (V)
Key Features
  • Back-illuminated Time-of-flight image sensor
  • High signal to noise ratio (SNR)
  • Full resolution @max60 frame/s (4phase/frame)
  • Pixel binning readout function
  • Independent flipping and mirroring
  • CSI-2 serial data output (MIPI 4lane, 960 Mbps/lane, D-PHY spec. ver. 1.2 compliant)
  • 2-wire serial communication (Supports I2C "Fast-mode") / 4-wire SPI
  • 4-wire SPI Master for Illumination signal
  • 192 bits of OTP for users
  • Built-in temperature sensor
Applications
  • FA cameras
  • Industrial cameras
