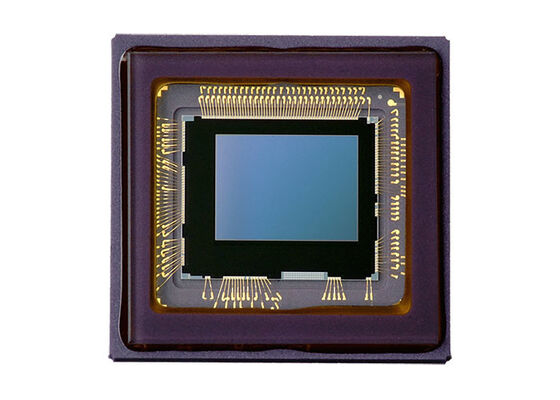

IMX570PLR-C CMOS Image Sensor with Square Pixel and Back-illuminated Design for ToF Cameras at 56fps Max Frame Rate

IMX570PLR-C is a diagonal 4.0 mm (Type 1/4.5) 640 × 480 fully integrated ToF (Time-of-Flight) camera sensor designed for 3D applications such as gesture recognition, active controls, and real world acquisition. Specifically engineered for FA/Security applications, this sensor returns correlation data when used with a pulsed IR light source, enabling derivation of depth and confidence images at 640 × 480 resolution.

The sensor features an integrated illumination controller and can be configured and controlled through an SPI Interface. It operates with analog 2.7 V, digital 1.2 V, and interface 1.8 V triple power supply, offering low power consumption.

• Image size: Diagonal 4.0 mm (Type 1/4.5)
• Total number of pixels: 648 (H) × 516 (V) approx. 0.334 M pixels
• Number of effective pixels: 648 (H) × 488 (V) approx. 0.316 M pixels
• Number of active pixels: 640 (H) × 480 (V) approx. 0.307 M pixels
• Unit cell size: 5.0 μm (H) × 5.0 μm (V)
• Substrate material: Silicon
• Package: 76 pin LGA 9.50 mm (H) × 8.70 mm (V)

• Back-illuminated Time-of-Flight image sensor
• High signal to noise ratio (SNR)
• 1/4.5-type optical Time-of-Flight sensor (optical area 3.2 × 2.4 mm²)
• 5 × 5 μm² pixels
• 640 × 480 Time-of-Flight pixels
• Full resolution @max56 frame/s (4phase/frame)
• Pixel binning readout function
• Independent flipping and mirroring
• CSI-2 serial data output (MIPI 2lane, 1440 Mbps/lane, D-PHY spec. ver. 1.2 compliant)
• I2C serial communication (Supports I2C "Fast-mode" / "Fast-mode Plus")
• SPI Master for peripheral configuration
• Demodulation frequency up to 120 MHz
• Shutter feature embedded
• 192 bits of OTP for users
• Built-in temperature sensor
