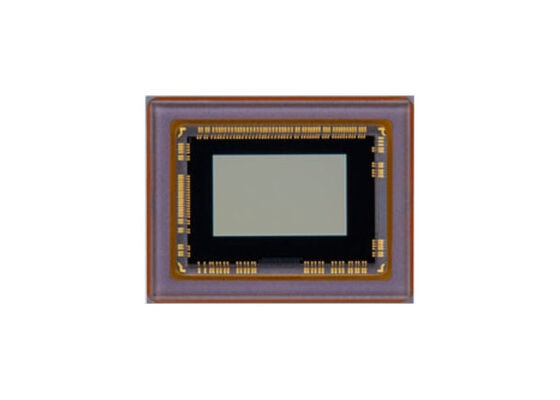

IMX454LXR-C CMOS Solid-State Image Sensor with Square Pixel Array and 2.13 M Effective Pixels for Multispectral Imaging

IMX454LXR-C CMOS Solid-State Image Sensor with Square Pixel Array and 2.13 M Effective Pixels for Multispectral Imaging
IMX454LXR-C CMOS Solid-State Image Sensor with Square Pixel Array and 2.13 M Effective Pixels for Multispectral Imaging

Large Image :  IMX454LXR-C CMOS Solid-State Image Sensor with Square Pixel Array and 2.13 M Effective Pixels for Multispectral Imaging

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX454LXR-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-114
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX454LXR-C CMOS Solid-State Image Sensor with Square Pixel Array and 2.13 M Effective Pixels for Multispectral Imaging

Description
Part Number: IMX454LXR-C Package: LGA-114
Unit Cell Size: 2.9 µm (H) × 2.9 µm (V) Image Size: Diagonal 6.46 Mm (Type 1/2.8)

IMX454LXR-C Sensor IC CMOS Solid-State Image Sensor With Square Pixel For Multispectral Imaging
Product Overview
IMX454LXR-C is a diagonal 6.46mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.13 M effective pixels. Multispectral Imaging can be achieved with dedicated signal processing. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. This chip features an electronic shutter with variable charge-integration time.
Specifications
Total number of pixels 1945 (H) × 1109 (V) Approx. 2.16 M pixels
Number of effective pixels 1945 (H) × 1097 (V) Approx. 2.13 M pixels
Number of active pixels 1937 (H) × 1097 (V) Approx. 2.12 M pixels
Number of recommended recording pixels 1920 (H) × 1080 (V) Approx. 2.07 M pixels
Unit cell size 2.9 µm (H) × 2.9 µm (V)
Package 114 pin LGA 12.0 mm (H) × 9.3 mm (V)
Key Features
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Rolling shutter function
  • Input frequency 74.25 MHz / 37.125 MHz
  • Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07 M pixels
  • Readout mode: All-pixel scan mode, 720p-HD readout mode, Window cropping mode
  • Vertical / Horizontal direction-normal / Inverted readout mode
  • Readout rate: Maximum frame rate in Full HD 1080p mode 120 frame / s
  • Wide dynamic range (WDR) function: Multiple exposure WDR, Digital overlap WDR
  • Variable-speed shutter function (resolution 1 H units)
  • 10-bit / 12-bit A/D converter
  • CDS / PGA function: 0 dB to 30 dB: Analog Gain 30 dB (0.3 dB step), 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (0.3 dB step)
  • Supports I/O interface: Low voltage LVDS (150m Vp-p) serial (2 ch / 4 ch / 8 ch switching) DDR output, CSI-2 serial data output (2 Lane / 4 Lane, RAW10 / RAW12 output)
Applications
  • FA cameras
  • Embedded vision systems
