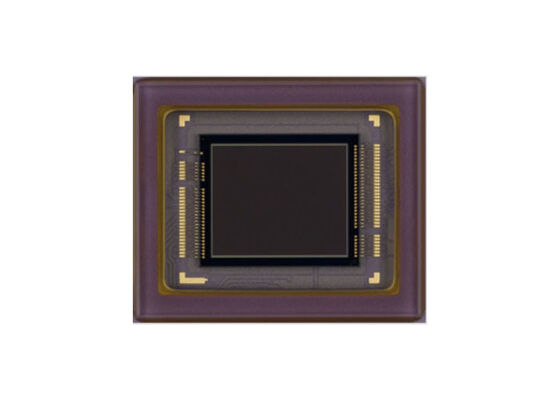

IMX676-AACR1 CMOS Image Sensor with 12.63 M Effective Pixels Square Pixel Array and Low Power Consumption

IMX676-AACR1 CMOS Image Sensor with 12.63 M Effective Pixels Square Pixel Array and Low Power Consumption
IMX676-AACR1 CMOS Image Sensor with 12.63 M Effective Pixels Square Pixel Array and Low Power Consumption

Large Image :  IMX676-AACR1 CMOS Image Sensor with 12.63 M Effective Pixels Square Pixel Array and Low Power Consumption

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX676-AACR1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-132
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX676-AACR1 CMOS Image Sensor with 12.63 M Effective Pixels Square Pixel Array and Low Power Consumption

Description
Part Number: IMX676-AACR1 Package: LGA-132
Unit Cell Size: 2.0 μm (H) × 2.0 μm (V) Input Frequency:: 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz

IMX676-AACR1 Sensor IC CMOS Solid-State Image Sensor With Square Pixel For Color Cameras
Product Overview

IMX676-AACR1 is a diagonal 10.04 mm (Type 1/1.6) CMOS active pixel type solid-state image sensor with a square pixel array and 12.63 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and features low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

Technical Specifications
  • Image size: Diagonal 10.04 mm (Type 1/1.6) approx. 12.63 M pixels, All pixels
  • Total number of pixels: 3552 (H) * 3576 (V) approx. 12.70 M pixels
  • Number of effective pixels: 3552 (H) * 3556 (V) approx. 12.63 M pixels
  • Number of active pixels: 3552 (H) * 3552 (V) approx. 12.61 M pixels
  • Number of recommended recording pixels: 3536 (H) * 3536 (V) approx. 12.50 M pixels
  • Unit cell size: 2.0 μm (H) * 2.0 μm (V)
  • Optical black: Horizontal (H) direction: Front 0 pixels, rear 0 pixels; Vertical (V) direction: Front 20 pixels, rear 0 pixels
  • Package: 132 pin LGA
Key Features
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Input frequency: 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz
  • Number of recommended recording pixels: 3536 (H) * 3536 (V) approx. 12.50M pixel
  • Multiple readout modes: All-pixel scan mode, Horizontal/Vertical 2/2-line binning mode, Window cropping mode
  • Horizontal/Vertical direction - Normal/Inverted readout mode
  • Maximum frame rate in All-pixel scan mode: 12 bit: 30 frame/s, 10 bit: 60 frame/s
  • Dual Speed Streaming (DSS) function
  • High dynamic range (HDR) function with Digital overlap HDR and Clear HDR
  • Synchronizing sensors function
  • Variable-speed shutter function (resolution 2H unit)
  • CDS/PGA function with 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB)
  • Supports I/O: CSI-2 serial data output (2-Lane/4-Lane/8-Lane/4-Lane * 2ch) RAW10/RAW12 output
  • AR coating on cover glass (Both sides)
Application

Security cameras
