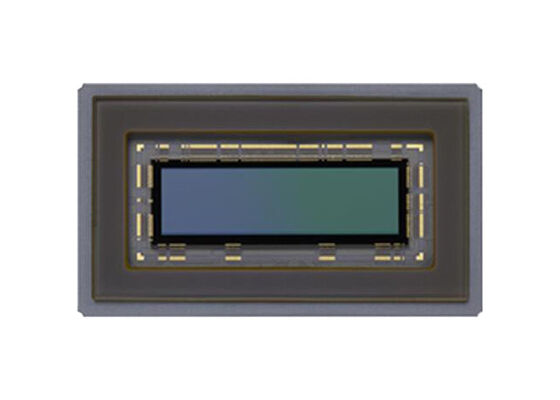

IMX901-AMR 1.4 Inches Global Shutter CMOS Image Sensor with 16.41 Million Pixels

IMX901-AMR 1.4 Inches Global Shutter CMOS Image Sensor with 16.41 Million Pixels
IMX901-AMR 1.4 Inches Global Shutter CMOS Image Sensor with 16.41 Million Pixels

Large Image :  IMX901-AMR 1.4 Inches Global Shutter CMOS Image Sensor with 16.41 Million Pixels

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX901-AMR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-260
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IMX901-AMR 1.4 Inches Global Shutter CMOS Image Sensor with 16.41 Million Pixels

Description
Part Number: IMX901-AMR Image Size: 22.7 Mm Diagonal (1.4 Inches)
Effective Pixels: 8016 (H) × 2048 (V), Approx. 16.41 Million Pixels Supply Voltage: 1.1 V, 1.8 V, 2.9 V, 3.3 V
Filter: Monochrome Package: Ceramic Package LGA-260

IMX901-AMR Sensor IC 1.4 Inches Global Shutter CMOS Solid-State Image Sensor With Square Pixel
Product Description
IMX901-AMR is a diagonal 22.67 mm (Type 1.4) CMOS active pixel type solid-state image sensor with a square pixel array and 16.41 M effective pixels. This chip features a global shutter with variable charge-integration time. The sensor operates with 3.3 V, 2.9 V, 1.1 V, and 1.8 V quadruple power supply, achieving high sensitivity and low dark current characteristics.
Specifications
Image size 22.7 mm diagonal (1.4 inches)
Effective pixels 8016 (H) × 2048 (V), approx. 16.41 million pixels
Pixel size 2.74 μm (H) × 2.74 μm (V)
Frame rate - Full-pixel output 10-bit: 134 frames/s
12-bit: 91 frames/s
Clock frequency 37.125 MHz / 74.25 MHz / 6-27 MHz (MIPI only)
Supply voltage 1.1 V, 1.8 V, 2.9 V, 3.3 V
Shutter mode Global shutter
Output interfaces SLVS-EC: 4/2/1 lane
SLVS: 8/4/2 lane
MIPI D-phy: 4/2/1 lane
Filter Monochrome
Package Ceramic package (LGA-260)
Dimensions 38 mm × 22 mm
Key Features
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Global shutter function
  • Input clock frequency 6 to 27 MHz (only for CSI-2) / 37.125 MHz / 74.25 MHz
  • Number of recommended recording pixels: 8008(H) x 2040(V) approx. 16.33 M pixels
  • Readout modes: All-pixel scan mode, Vertical/Horizontal 1/2 Subsampling mode, 2 x 2 FD binning mode, ROI mode, Vertical/Horizontal - Normal/Inverted readout mode
  • Maximum frame rate in All-pixel scan mode: 10-bit 134.7 frame/s, 12-bit 91.5 frame/s
  • Variable-shutter speed (1 XHS unit step)
  • Pulse Output Function with monitor output for Integration period (TOUT0)
  • 10-bit / 12-bit A/D converter
  • CDS/PGC function with variable analog gain (0 dB to 24 dB) and fixed analog gain + variable digital gain (24.1 dB to 48 dB)
  • I/O interfaces: SLVS (2ch/4ch/8ch) output, SLVS-EC (1 Lane/2 Lane/4 Lane) output, CSI-2 (1 Lane/2 Lane/4 Lane) output
  • CRA characteristics: Target CRA is 9.7 degree at 100% image height
Applications
  • FA Cameras
  • ITS Cameras
