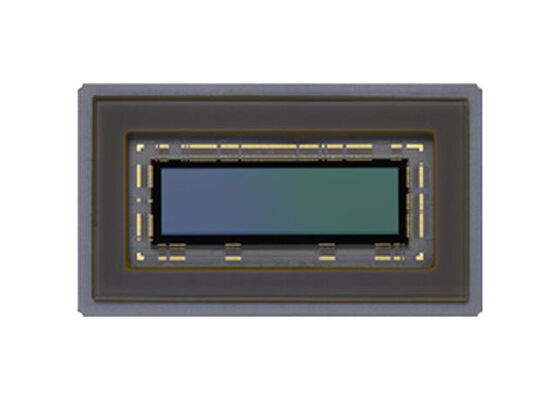

IMX902-AMR Sensor IC 1.1 Inches Global Shutter CMOS Image Sensor with 12.38 Megapixels

IMX902-AMR Sensor IC 1.1 Inches Global Shutter CMOS Image Sensor with 12.38 Megapixels
IMX902-AMR Sensor IC 1.1 Inches Global Shutter CMOS Image Sensor with 12.38 Megapixels

Large Image :  IMX902-AMR Sensor IC 1.1 Inches Global Shutter CMOS Image Sensor with 12.38 Megapixels

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX902-AMR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-260
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IMX902-AMR Sensor IC 1.1 Inches Global Shutter CMOS Image Sensor with 12.38 Megapixels

Description
Part Number: IMX902-AMR Image Size: 17.5 Mm Diagonal (1.1 Inches)
Effective Pixels: 6048 (H) × 2048 (V), Approx. 12.38 Megapixels Supply Voltage: 1.1 V, 1.8 V, 2.9 V, 3.3 V
Pixel Size: 2.74 μm (H) × 2.74 μm (V) Shutter Mode: Global Shutter

IMX902-AMR Sensor IC 1.1 Inches Global Shutter CMOS Image Sensor With Square Pixel
Product Description

The IMX902-AMR is a global shutter image sensor featuring 2.74μm micro-pixels. By increasing the pixel count horizontally to 8K/6K (wide-angle), it achieves a high resolution of approximately 12.38 million effective pixels.

The IMX902-AMR supports C-mount lenses, which are widely used in industrial applications, delivering high-definition, wide-angle views with a resolution of 8K horizontally and 2K vertically. This enables a wider field of view in inspection and barcode recognition applications where conveyor belts are becoming increasingly wide.

Specifications
Image size17.5 mm diagonal (1.1 inches)
Effective pixels6048 (H) × 2048 (V), approx. 12.38 megapixels
Pixel size2.74 μm (H) × 2.74 μm (V)
Frame rate - Full-pixel output10-bit: 134 frames/s
12-bit: 91 frames/s
Clock frequency37.125 MHz / 74.25 MHz / 6-27 MHz (MIPI only)
Supply voltage1.1 V, 1.8 V, 2.9 V, 3.3 V
Shutter modeGlobal shutter
Output interfacesSLVS-EC: 4/2/1 lane
SLVS: 8/4/2 lane
MIPI D-phy: 4/2/1 lane
FilterMonochrome
PackageCeramic package (LGA-260)
Dimensions38 mm × 22 mm
Features
  • CMOS active pixel type dots
  • Built-in timing adjustment circuit, H/V driver and serial communication circuit
  • Global shutter function
  • Input clock frequency 6 to 27 MHz (only for CSI-2) / 37.125 MHz / 74.25 MHz
  • Number of recommended recording pixels: 8008(H) x 2040(V) approx. 16.33 M pixels
  • Readout modes: All-pixel scan mode, Vertical/Horizontal 1/2 Subsampling mode, 2 x 2 FD binning mode, ROI mode, Vertical/Horizontal - Normal/Inverted readout mode
  • Readout rate: Maximum frame rate in All-pixel scan mode: 10-bit 134.7 frame/s, 12-bit 91.5 frame/s
  • At high frame rates, control so as not to exceed Tj = +100°C
  • Variable-shutter speed (1 XHS unit step)
  • Pulse Output Function
  • The monitor output for Integration period (TOUT0)
  • 10-bit / 12-bit A/D converter
  • CDS/PGC function
  • 0 dB to 24 dB: Variable analog Gain (0.1 dB step)
  • 24.1 dB to 48 dB: Fixed analog Gain: 24 dB + variable digital Gain: 0.1 dB to 24 dB (0.1 dB step)
  • I/O interface: SLVS (2ch/4ch/8ch) output, SLVS-EC (1 Lane/2 Lane/4 Lane) output, CSI-2 (1 Lane/2 Lane/4 Lane) output
  • CRA characteristics: The target CRA is 9.7 degree at 100% image height
Applications
  • FA Cameras
  • ITS Cameras
