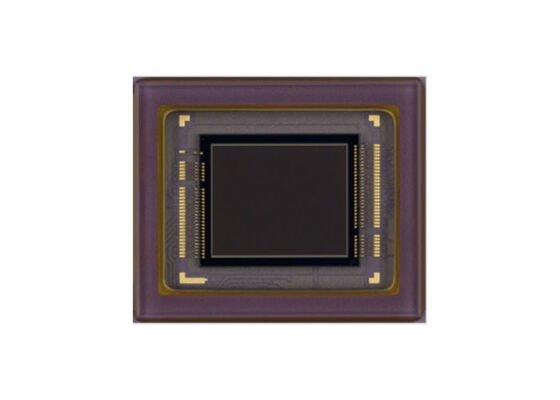

IMX832-AQR CMOS Image Sensor with Diagonal 6.45 mm Square Pixel Array and 2.12 M Effective Pixels for Color Cameras

IMX832-AQR is a diagonal 6.45 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.12 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and features low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

• Image size: Diagonal 6.45 mm (Type 1/2.8) approx. 2.13 M pixels, All pixels
• Total number of pixels: 1936 (H) × 1120 (V) approx. 2.16 M pixels
• Number of effective pixels: 1936 (H) × 1100 (V) approx. 2.12 M pixels
• Number of active pixels: 1936 (H) × 1096 (V) approx. 2.12 M pixels
• Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07 M pixels
• Unit cell size: 2.9 μm (H) × 2.9 μm (V)
• Optical black: Horizontal (H) direction: Front 0 pixels, rear 0 pixels; Vertical (V) direction: Front 20 pixels, rear 0 pixels
• Dummy: Horizontal (H) direction: Front 0 pixels, rear 0 pixels; Vertical (V) direction: Front 0 pixels, rear 0 pixels
• Package: 114 pin LGA

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Input frequency: 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz
• Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
• Readout modes: All-pixel scan mode, Horizontal/Vertical 2/2-line binning mode, Window cropping mode
• Horizontal/Vertical direction - Normal/Inverted readout mode
• Readout rate: Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 90 frame/s
• High dynamic range (HDR) function: Digital overlap HDR, Clear HDR
• Synchronizing sensors function
• Variable-speed shutter function (resolution 1H unit)
• 10-bit / 12-bit A/D converter
• CDS / PGA function: 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB); 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
• Supports I/O: CSI-2 serial data output (2 Lane / 4 Lane) RAW10 / RAW12 output

Security cameras
