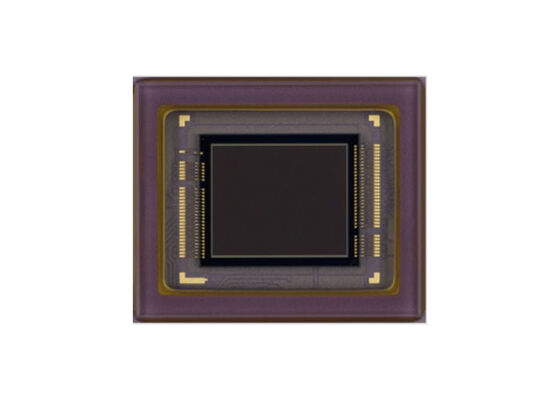

IMX662-AAQR CMOS Image Sensor with 2.9 μm Square Pixel Low Power Consumption and High Sensitivity for Color Cameras

IMX662-AAQR is a diagonal 6.45 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and has low power consumption. High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters. This chip features an electronic shutter with variable charge-integration time.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Input frequency: 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz
• Number of recommended recording pixels: 1920 (H) × 1080 (V) approx. 2.07M pixel
• Readout mode: All-pixel scan mode, Horizontal / Vertical 2/2-line binning mode, Window cropping mode
• Horizontal / Vertical direction - Normal / Inverted readout mode
• Readout rate Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 90 frame/s
• High dynamic range (HDR) function: Digital overlap HDR, Clear HDR
• Synchronizing sensors function
• Variable-speed shutter function (resolution 1H unit)
• 10-bit / 12-bit A/D converter
• CDS / PGA function: 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB), 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
• Supports I/O: CSI-2 serial data output (2 Lane / 4 Lane) RAW10 / RAW12 output

• Security cameras
