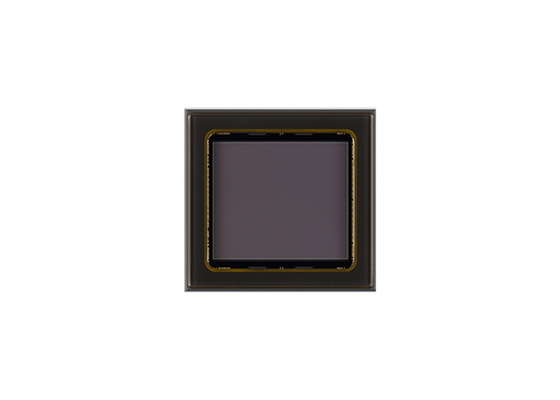

IMX927-AMB CMOS Image Sensor with 105 M Effective Pixels, Global Shutter Function, and Square Pixel Array for Monochrome Cameras

The IMX927-AMB is a diagonal 39.7 mm (Type 2.5) CMOS active pixel type solid-state image sensor with a square pixel array and 105 M effective pixels. This chip features a global shutter with variable charge-integration time and operates with 3.3 V, 2.9 V, 1.1 V, and 1.8 V quadruple power supply. It achieves high sensitivity and low dark current characteristics.

• Image size: Diagonal 39.7 mm (Type 2.5) Approx. 105.51 M pixels
• Total number of pixels: 10272 (H) × 10368 (V) Approx. 106.50 M pixels
• Number of effective pixels: 10272 (H) × 10272 (V) Approx. 105.51 M pixels
• Number of active pixels: 10248 (H) × 10248 (V) Approx. 105.02 M pixels
• Number of recommended recording pixels: 10240 (H) × 10240 (V) Approx. 104.85 M pixels
• Unit cell size: 2.74 µm (H) × 2.74 µm (V)
• Optical black: Horizontal (H) direction: Front 0 pixel, Rear 0 pixel; Vertical (V) direction: Front 64 pixels, Rear 0 pixel
• Package: Ceramic package with connector, 160 pin × 2, 45 mm (H) × 52 mm (V)

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Global shutter function
• Input clock frequency: 37.125 MHz / 74.25 MHz
• Multiple readout modes: All-pixel scan mode, H2V2 FD binning mode, H1V2 FD binning mode, H2V1 FD binning mode, ROI mode, Vertical/Horizontal Normal/Inverted readout mode
• Maximum frame rate in All-pixel scan mode: 8-bit 112.1 frame/s, 10-bit 102.3 frame/s, 12-bit 73.1 frame/s
• Variable-shutter speed
• Pulse Output Function with monitor output for Integration period and internal AD period
• 8-bit / 10-bit / 12-bit Output
• CDS / PGC function with variable gain control
• I/O interface: SLVS-EC (2 Lane, 4 Lane, 6 Lane, 8 Lane, 4 Lane × 2, 6 Lane × 2, 8 Lane × 2) output
• CRA characteristics: Target CRA is 6 degree at 100% image height
• Ceramic package with floating connector type

• FA cameras
• 3D vision cameras
