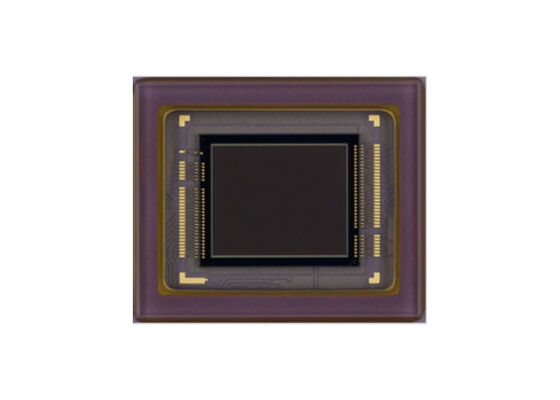

IMX676-AAMR1 CMOS Image Sensor with 12.63 M Effective Pixels Low Power Consumption and HDR for Monochrome Cameras

The IMX676-AAMR1 is a diagonal 10.04 mm (Type 1/1.6) CMOS active pixel type solid-state image sensor with a square pixel array and 12.63 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and features low power consumption. It achieves high sensitivity, low dark current, and no smear. The chip includes an electronic shutter with variable charge-integration time.

• Image size: Diagonal 10.04 mm (Type 1/1.6) approx. 12.63 M pixels, All pixels
• Total number of pixels: 3552 (H) × 3576 (V) approx. 12.70 M pixels
• Number of effective pixels: 3552 (H) × 3556 (V) approx. 12.63 M pixels
• Number of active pixels: 3552 (H) × 3552 (V) approx. 12.61 M pixels
• Number of recommended recording pixels: 3536 (H) × 3536 (V) approx. 12.50 M pixels
• Unit cell size: 2.0 μm (H) × 2.0 μm (V)
• Optical black: Horizontal (H) direction: Front 0 pixels, rear 0 pixels; Vertical (V) direction: Front 20 pixels, rear 0 pixels
• Package: 132 pin LGA

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Input frequency: 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz
• Number of recommended recording pixels: 3536 (H) × 3536 (V) approx. 12.50M pixel
• Readout modes: All-pixel scan mode, Window cropping mode, Horizontal/Vertical direction - Normal/Inverted readout mode
• Readout rate: Maximum frame rate in All-pixel scan mode: 12 bit: 30 frame/s, 10 bit: 60 frame/s
• Dual Speed Streaming (DSS) function
• High dynamic range (HDR) function: Digital overlap HDR, Clear HDR
• Synchronizing sensors function
• Variable-speed shutter function (resolution 2H unit)
• CDS/PGA function: 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB), 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
• Supports I/O: CSI-2 serial data output (2-Lane/4-Lane/8-Lane/4-Lane × 2ch)
• RAW10/RAW12 output
• AR coating on cover glass (Both sides)

Security cameras
