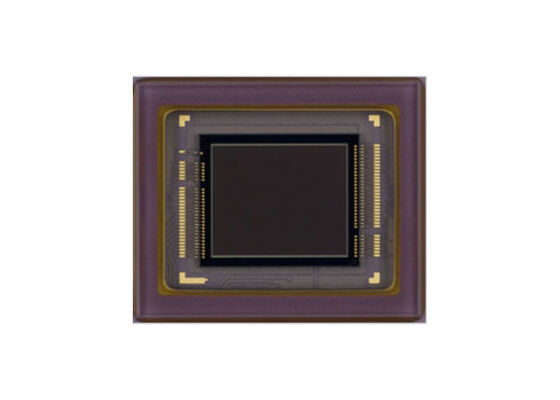

IMX678-AAMR1 CMOS Image Sensor 8.86mm Diagonal Solid-State Image Sensor with Square Pixel Array for Monochrome Cameras

The IMX678-AAMR1 is a diagonal 8.86 mm (Type 1/1.8) CMOS active pixel type solid-state image sensor with a square pixel array and 8.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 V, and interface 1.8 V triple power supply, and features low power consumption. It achieves high sensitivity, low dark current, and no smear, and includes an electronic shutter with variable charge-integration time.

• Image size: Diagonal 8.86 mm (Type 1/1.8) approx. 8.40 M pixels, All pixels
• Total number of pixels: 3856 (H) × 2200 (V) approx. 8.48 M pixels
• Number of effective pixels: 3856 (H) × 2180 (V) approx. 8.40 M pixels
• Number of active pixels: 3856 (H) × 2176 (V) approx. 8.39 M pixels
• Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29 M pixels
• Unit cell size: 2.0 μm (H) × 2.0 μm (V)
• Optical black: Horizontal (H) direction: Front 0 pixels, rear 0 pixels; Vertical (V) direction: Front 20 pixels, rear 0 pixels
• Package: 132 pin LGA

• CMOS active pixel type dots
• Built-in timing adjustment circuit, H/V driver and serial communication circuit
• Input frequency: 13.5MHz / 18MHz / 24MHz / 27MHz / 36MHz / 37.125 MHz / 72 MHz / 74.25 MHz
• Number of recommended recording pixels: 3840 (H) × 2160 (V) approx. 8.29M pixel
• Readout modes: All-pixel scan mode, Horizontal/Vertical 2/2-line binning mode, Window cropping mode
• Horizontal/Vertical direction - Normal/Inverted readout mode
• Readout rate: Maximum frame rate in All-pixel scan mode: 12 bit: 60 frame/s, 10 bit: 72 frame/s
• High dynamic range (HDR) function: Digital overlap HDR, Clear HDR
• Synchronizing sensors function
• Variable-speed shutter function (resolution 1H units)
• CDS/PGA function: 0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB), 30.3 dB to 72 dB: Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)
• Supports I/O: CSI-2 serial data output (2 Lane / 4 Lane / 8Lane / 4Lane × 2ch)
• RAW10 / RAW12 output
• AR coating on cover glass (Both sides)

Security cameras
