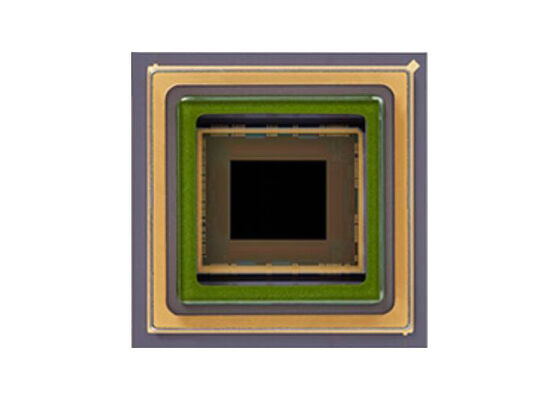

IMX992-AABJ-C High-Resolution SWIR Image Sensor with Diagonal 11.4mm and SenSWIR Technology

IMX992-AABJ-C is a high-resolution, high-performance SWIR image sensor featuring an upgraded version of SenSWIR™ technology. With its 3.45μm micro-pixels, it achieves a compact form factor whilst maintaining high resolution.

IMX992-AABJ-C utilises a digital output method and offers powerful functionality, supporting both SLVS and MIPI interfaces, thereby facilitating camera design and allowing for flexible component selection. The IMX992-AABJ-C meets the complex and diverse requirements of industrial applications such as inspection, recognition and measurement, contributing to improved production efficiency.

• Image size: 11.4 mm diagonal (1/1.4 inch)
• Effective pixels: 2592 (H) × 2056 (V), approx. 5.32 megapixels
• Pixel size: 3.45 μm (H) × 3.45 μm (V)
• Optical black area:
  • Horizontal: 96 pixels at the front, 0 pixels at the rear
  • Vertical direction: 24 pixels at the front, 0 pixels at the rear
• Frame rate (maximum) - Full-pixel output:
  • 8-bit: 131 fps
  • 10-bit: 120 fps
  • 12-bit: 70 fps
• Input frequency: 37.125 MHz / 74.25 MHz / 54 MHz
• Power Supply: 1.2 V, 1.8 V, 2.2 V, 3.3 V
• Shutter Mode: Global Shutter (Rolling Shutter when DRRS is enabled)
• Output interfaces: SLVS (2 ch / 4 ch / 8 ch) / MIPI (2 lane / 4 lane)
• Dimensions: 21.0 mm (H) × 20.0 mm (V)
• Sensitivity: 291 mV
• Saturation level: 360 mV
• Quantum efficiency: >75 %

• High-resolution, High-performance SWIR Image Sensor
• 1/1.4-inch, approx. 5.32 megapixels
• Short-Wavelength InfraRed Image Sensor Technology SenSWIR
• The industry's highest resolution*1 of 5.32 effective megapixels achieved high-definition SWIR imaging
• Achieve low-noise performance regardless of the brightness or darkness of the environment
• Improved flexibility in camera settings thanks to MIPI compatibility
• Capable of high-sensitivity imaging on any bandwidth, from visible light to SWIR
