CXD5605AGF Integrated Circuit Chip Low Power Multi-Constellation Single Band L1 GNSS Receiver

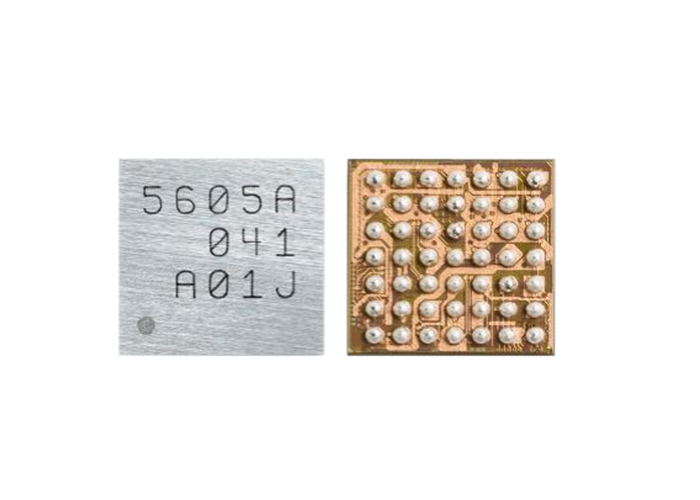

Large Image : CXD5605AGF Integrated Circuit Chip Low Power Multi-Constellation Single Band L1 GNSS Receiver

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	CXD5605AGF

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	WLCSP-49
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

CXD5605AGF Integrated Circuit Chip Low Power Multi-Constellation Single Band L1 GNSS Receiver

Description

Part Number:	CXD5605AGF	Package:	WLCSP-49
Op. Temp.:	-40˚C To 85˚C	Accuracy:	1.0m
Power Consumption @ 1Hz::	7 MW	I/O Voltage:	1.8V

CXD5605AGF Integrated Circuit Chip Low Power Multi-Constellation Single Band L1 GNSS Receiver

Product Overview

CXD5605AGF is a low power multi-constellation single band L1 GNSS receiver in WLCSP-49 package.

Specifications

Parameter	Value
Power consumption, @ continuous tracking	6 mW
Support Constellation	GPS, GLONASS, Galileo, BeiDou, QZSS
Sensitivity	Cold Start: -147dBm, Hot Start: -161dBm, Tracking: -161dBm
TTFF	Cold Start: -35s, Hot Start: 1s
UDR Support	No
Host Interface IO Voltage	1.8 V
Core Voltage	0.70 V
Assisted GPS	Yes
Geofence	Yes
Package	3.1 × 3.0 mm, 49-pin WLCSP
Ext. FLASH memory	Not Required
Op. Temp.	-40 to 85℃

Key Features

Ultra low power consumption
Extend battery life with a very small form factor, without compromising performance
Highly accurate positioning
High precision positioning for superior tracking capabilities in multiple environments

Applications

Micromobility
Wearables
Asset Trackers
Vehicle Trackers
Pet & Livestock Trackers
mHealth
