ADUM3210TRZ Dual-Channel Digital Isolator IC Chip with 2500Vrms Isolation and Enhanced ESD Reliability

ADUM3210TRZ Dual-Channel Digital Isolator IC Chip with 2500Vrms Isolation and Enhanced ESD Reliability
ADUM3210TRZ Dual-Channel Digital Isolator IC Chip with 2500Vrms Isolation and Enhanced ESD Reliability

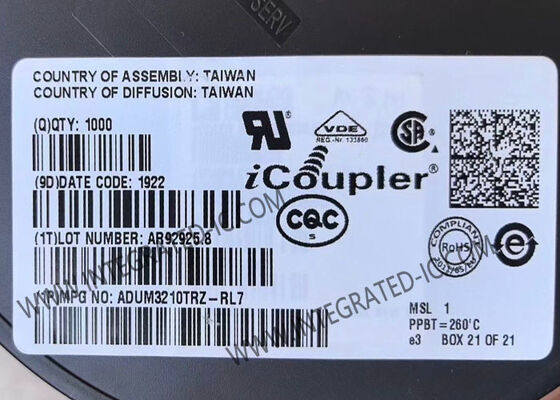

Large Image :  ADUM3210TRZ Dual-Channel Digital Isolator IC Chip with 2500Vrms Isolation and Enhanced ESD Reliability

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADUM3210TRZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-SOIC
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

ADUM3210TRZ Dual-Channel Digital Isolator IC Chip with 2500Vrms Isolation and Enhanced ESD Reliability

Description
Part Number: ADUM3210TRZ Number Of Channels: 2
Inputs - Side 1/Side 2: 2/0 Voltage - Isolation: 2500Vrms
Common Mode Transient Immunity (Min): 25kV/µs Data Rate: 10Mbps

ADUM3210TRZ Integrated Circuit Chip Dual-Channel Digital Isolator
Product Overview

The ADUM3210TRZ is a dual-channel digital isolator based on iCoupler® technology. By combining high-speed CMOS and monolithic transformer technology, this isolation component delivers superior performance characteristics compared to alternatives such as optocoupler devices, with enhanced system-level ESD reliability.

Specifications
Parameter Value
Number of Channels 2 Channel
Polarity Bidirectional
Data Rate 25 Mb/s
Isolation Voltage 2500 Vrms
Isolation Type Magnetic Coupling
Supply Voltage - Max 5.5 V
Supply Voltage - Min 2.7 V
Operating Supply Current 7.6 mA
Propagation Delay Time 50 ns
Minimum Operating Temperature -40°C
Maximum Operating Temperature +105°C
Key Features
  • Enhanced system-level ESD performance per IEC 61000-4-x
  • High temperature operation: 125°C
  • Default low output
  • Narrow body, RoHS-compliant, 8-lead SOIC
  • Low power operation
  • 5 V operation (refer to data sheet)
  • 3.3 V operation (refer to data sheet)
  • High data rate: dc to 25 Mbps (NRZ)
  • See data sheet for additional features
Applications
  • Size-critical multichannel isolation
  • SPI interface/data converter isolation
  • RS-232/RS-422/RS-485 transceiver isolation
  • Digital field bus isolation
  • Gate drive interface
  • Hybrid electric vehicles, battery monitor, and motor driver
