STWD100YNXWY3F Automotive Qualified Watchdog Timer Circuit Chip with Low Power Consumption 13 µA and Wide Temperature Range -40 to +125 °C

STWD100YNXWY3F Automotive Qualified Watchdog Timer Circuit Chip with Low Power Consumption 13 µA and Wide Temperature Range -40 to +125 °C
STWD100YNXWY3F Automotive Qualified Watchdog Timer Circuit Chip with Low Power Consumption 13 µA and Wide Temperature Range -40 to +125 °C

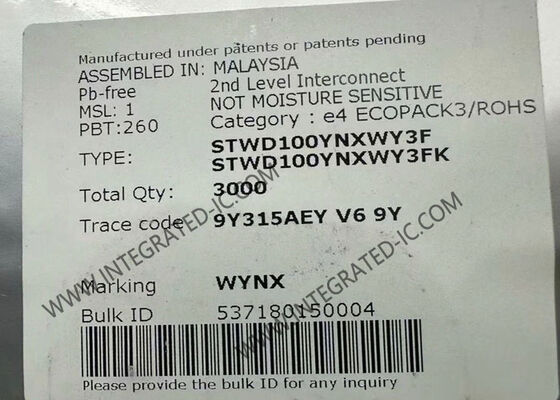

Large Image :  STWD100YNXWY3F Automotive Qualified Watchdog Timer Circuit Chip with Low Power Consumption 13 µA and Wide Temperature Range -40 to +125 °C

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STWD100YNXWY3F
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-23-5
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

STWD100YNXWY3F Automotive Qualified Watchdog Timer Circuit Chip with Low Power Consumption 13 µA and Wide Temperature Range -40 to +125 °C

Description
Part Number: STWD100YNXWY3F Supply Voltage - Min:: 2.7 V
Supply Voltage - Max:: 5.5 V Minimum Operating Temperature:: - 40 C
Maximum Operating Temperature:: + 125 C Operating Supply Current:: 13 UA

STWD100YNXWY3F Integrated Circuit Chip 1 Channel Automotive Watchdog Timer Circuit Chip
Product Overview

STWD100YNXWY3F watchdog timer circuits are self-contained devices designed to prevent system failures caused by hardware errors (such as non-responding peripherals and bus contention) or software errors (such as bad code jumps and code stuck in loops).

The watchdog timer features an input (WDI) and an output (WDO). The input is used to clear the internal watchdog timer periodically within the specified timeout period (twd). While the system operates correctly, it periodically toggles the watchdog input. If the system fails, the watchdog timer is not reset, generating a system alert and asserting the watchdog output (WDO).

Specifications
Number of Internal Timers 1 Timer
Output Type Open-Drain, Push-Pull
Package/Case SOT-23-5
Supply Voltage - Min 2.7 V
Supply Voltage - Max 5.5 V
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
Operating Supply Current 13 uA
Power Dissipation 320 mW
Unit Weight 16.380 mg
Key Features
  • Current consumption: 13 µA typical
  • Available watchdog timeout periods: 3.4 ms, 6.3 ms, 102 ms, and 1.6 s
  • Chip enable input
  • Open drain or push-pull WDO output
  • Operating temperature range: -40 to 125°C
  • Packages: SOT23-5 and SC70-5 (SOT323-5)
  • ESD performance: HBM: 2000 V, RCDM: 1000 V
  • Automotive qualified
Applications
  • Telecommunications
  • Alarm systems
  • Industrial equipment
  • Networking
  • Medical equipment
  • UPS (uninterruptible power supply)
  • Automotive
