OPA657N/250 1.6GHz Low Noise FET-Input Operational Amplifier with 700V/µs Slew Rate

OPA657N/250 1.6GHz Low Noise FET-Input Operational Amplifier with 700V/µs Slew Rate
OPA657N/250 1.6GHz Low Noise FET-Input Operational Amplifier with 700V/µs Slew Rate

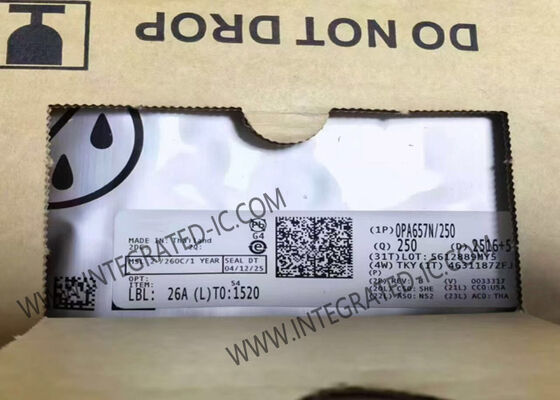

Large Image :  OPA657N/250 1.6GHz Low Noise FET-Input Operational Amplifier with 700V/µs Slew Rate

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: OPA657N/250
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOT-23-5
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

OPA657N/250 1.6GHz Low Noise FET-Input Operational Amplifier with 700V/µs Slew Rate

Description
Part Number: OPA657N/250 Slew Rate: 700V/µs
Gain Bandwidth Product: 1.6 GHz Current - Input Bias: 2 PA
Voltage - Input Offset: 250 µV Operating Temperature: -40°C ~ 85°C

OPA657N/250 Integrated Circuit Chip 1.6GHz Low Noise FET-Input Operational Amplifier SOT-23-5

The OPA657N/250 is a 1.6GHz, low noise, FET-input operational amplifier that combines high-gain bandwidth and low-distortion voltage-feedback with a low-voltage noise JFET-input stage. This configuration provides exceptional dynamic range for high-precision ADC driving and wideband transimpedance applications. Photodiode applications benefit from improved noise performance and bandwidth using this decompensated, high-gain bandwidth amplifier.

Specifications
Product Category High Speed Operational Amplifiers
Number of Channels 1 Channel
GBP - Gain Bandwidth Product 1.6 GHz
SR - Slew Rate 700 V/μs
Voltage Gain dB 70 dB
CMRR - Common Mode Rejection Ratio 89 dB
Output Current per Channel 70 mA
Ib - Input Bias Current 20 pA
Vos - Input Offset Voltage 250 μV
Supply Voltage - Max 12 V
Supply Voltage - Min 8 V
Operating Supply Current 14 mA
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +85 ℃
Mounting Style SMD/SMT
Package / Case SOT-23-5
en - Input Voltage Noise Density 4.8 nV/√Hz
PSRR - Power Supply Rejection Ratio 76 dB
Key Features
  • High Gain Bandwidth Product: 1.6 GHz
  • High Bandwidth 275 MHz (G = 10)
  • Slew Rate 700 V/µs (G = 10, 1-V Step)
  • Available in High Grade With Improved DC Specifications
  • Operating Temperature Range: -40°C to 85°C
  • Low-Input Offset Voltage: ±250 µV
  • Low-Input Bias Current: 2 pA
  • Low-Input Voltage Noise: 4.8 nV/√Hz
  • High-Output Current: 70 mA
  • Fast Overdrive Recovery
Applications
  • Wideband Photodiode Amplifier
  • Wafer Scanning Equipment
  • ADC Input Amplifier
  • Test and Measurement Front End
  • High Gain Precision Amplifier
  • Optical Time Domain Reflectometry (OTDR)
