XDPP1100-Q040 Integrated Circuit Chip XDP™ Digital Power Controller With PMBus 1.3 Interface For Isolated DC-DC Power Applications And 2 MHz PWM Frequency

XDPP1100-Q040 Integrated Circuit Chip XDP™ Digital Power Controller With PMBus 1.3 Interface For Isolated DC-DC Power Applications And 2 MHz PWM Frequency
XDPP1100-Q040 Integrated Circuit Chip XDP™ Digital Power Controller With PMBus 1.3 Interface For Isolated DC-DC Power Applications And 2 MHz PWM Frequency

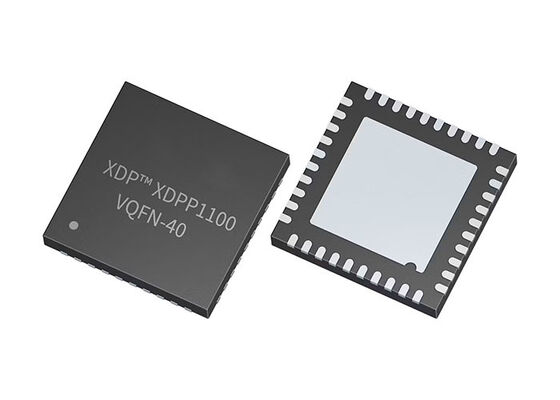

Large Image :  XDPP1100-Q040 Integrated Circuit Chip XDP™ Digital Power Controller With PMBus 1.3 Interface For Isolated DC-DC Power Applications And 2 MHz PWM Frequency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: XDPP1100-Q040
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-40
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

XDPP1100-Q040 Integrated Circuit Chip XDP™ Digital Power Controller With PMBus 1.3 Interface For Isolated DC-DC Power Applications And 2 MHz PWM Frequency

Description
Part Number: XDPP1100-Q040 Communication Interfaces: I2C, PMBUS, UART
DPWM Resolution: 78.125 Ps I-ADC: 2
Memory: 80kB ROM, 32kB RAM, 64kB OTP PWM Frequency Max: 2 MHz

XDPP1100-Q040 Integrated Circuit Chip XDP™ Integrated Digital Power Controller With PMBus For Isolated DC-DC Power Applications
XDPP1100-Q040 Integrated Circuit Chip XDP™ Integrated Digital Power Controller With PMBus For Isolated DC-DC Power Applications
Product Description
XDPP1100-Q040 is a highly-integrated and programmable XDP™ digital power supply controller. This device offers advanced power control solutions for a wide variety of DC-DC power applications and supports various isolated and non-isolated topologies. The unique architecture includes many optimized power-processing blocks to enhance the performance of isolated DC-DC converters, reduce external components, and minimize firmware development efforts.
This controller provides accurate telemetry and a Power Management Bus (PMBus 1.3) interface for system communication, advanced power conversion, and monitoring. Integrated current-sensing capability and compact chip size can greatly reduce the solution size by eliminating many external components, while supporting up to two fully independent voltage loops.
A combination of high-performance AFE, state-machine-based digital control loop, and a microcontroller integrated in a single chip makes the XDPP1100-Q040 a highly integrated, programmable, and fastest time-to-market technology for modern high-end power systems. It is ideal for telecom infrastructures, 48V server motherboards, datacenters, and industrial 4.0 applications, designed to meet power quality and latency challenges.
Specifications
Communication Interfaces I2C, PMBUS, UART
DPWM Resolution 78.125 ps
GPIO 16
I-ADC 2
Memory 80kB ROM, 32kB RAM, 64kB OTP
Package PG-VQFN-40
PWM Frequency max 2 MHz
PWM Outputs 12
Supply Voltage 3.3 V
V-ADC 3
Voltage Loops max 2
Features
  • Digitally configurable feedback control supports various control modes
  • Including 100MHz, 32bit Arm® Cortex® -M0 processor for customization
  • Enhanced dynamic transient performance with VIN feed-forward control
  • Low IC standby power
  • Flux- and phase-current balancing
  • Dedicated hardware peripherals including high-performance voltage and current sense ADCs
  • Supporting burst mode, diode emulation, synchronous rectification soft on/off
  • Excellent load regulation with Infineon patented, fast transient response-control schemes
  • Firmware-based system configuration with GUI support
Benefits
  • Firmware-based system configuration with GUI support for ease of use and product differentiation
  • User specific customization and software based design changes
  • Pre-programmed peripherals and configurability for faster time to market
  • Enhanced control and excellent dynamic transient performance
  • Integrated V/I sensing capability for best-in-class system performance, significantly reduced BOM size, and low system cost
  • Sophisticated system-level fault handling
  • System housekeeping (fan control, LED control, sequencing, PGOOD etc.) with configurable GPIOs
  • High efficiency at light-load management
Applications
  • Medium voltage IBC (48 V)
  • Telecommunications infrastructure
