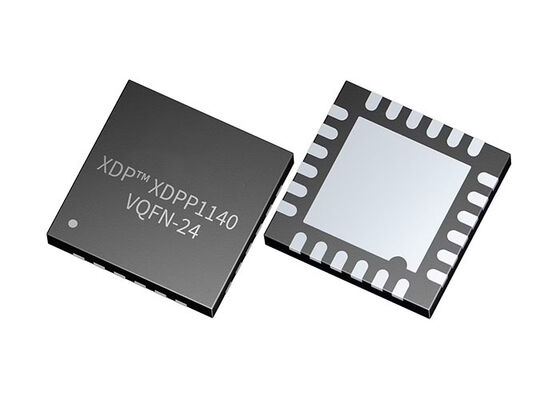

XDPP1140-100B Integrated Circuit Chip Digital Controller for DC-DC Conversion with 3.3 V Input Voltage 2 MHz PWM Frequency and 6 PWM Outputs

XDPP1140-100B Integrated Circuit Chip Digital Controller for DC-DC Conversion with 3.3 V Input Voltage 2 MHz PWM Frequency and 6 PWM Outputs
XDPP1140-100B Integrated Circuit Chip Digital Controller for DC-DC Conversion with 3.3 V Input Voltage 2 MHz PWM Frequency and 6 PWM Outputs

Large Image :  XDPP1140-100B Integrated Circuit Chip Digital Controller for DC-DC Conversion with 3.3 V Input Voltage 2 MHz PWM Frequency and 6 PWM Outputs

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: XDPP1140-100B
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-24
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

XDPP1140-100B Integrated Circuit Chip Digital Controller for DC-DC Conversion with 3.3 V Input Voltage 2 MHz PWM Frequency and 6 PWM Outputs

Description
Part Number: XDPP1140-100B GPIO: 11
Input Voltage Range: 3.3 V PWM Frequency Max: 2 MHz
Supply Voltage: 3.3 V PWM Outputs: 6

XDPP1140-100B Integrated Circuit Chip XDP™ Integrated Digital Controller For DC-DC Conversions With PWM And LLC Support
Product Description

XDPP1140-100B is the latest generation of digital controller product family. It adds close-loop LLC topology support, enhanced feed-forward, non-linear fast transient, light load power management and bi-directional configuration. The high-performance AFE, state-machine-based digital control loop, and Cortex®-M0 processor integrated in the 4x4 mm 24-pin VQFN package enables high power quality, low latency, and flexible power supply designs.

Specifications
Communication Interfaces I2C, PMBUS, UART, SPI
DPWM Resolution 78.125 ps
GPIO 11
I-ADC 1
Input Voltage range 3.3 V
Memory 80kB ROM; 32kB RAM; 64kB OTP
Package PG-VQFN-24
PWM Frequency max 2 MHz
PWM Outputs 6
Supply Voltage 3.3 V
V-ADC 2
Voltage Loops max 1
Features
  • Industry's smallest 4x4 mm VQFN package
  • 100 MHz, 32bit Cortex®-M0 processor
  • Feed-forward control
  • PWM and PFM mode support
  • Flux balancing
  • 2 V-sense ADCs and 1 I-sense ADC
  • Burst mode, diode-emu & phase shedding
  • Fast transient & non-linear PID response
  • Firmware-based system configuration
  • Active current sharing
  • I2C/PMBus 1.4, UART and SPI interface
  • Low power consumption sleep mode
Benefits
  • Easy product differentiation
  • User-specific customization
  • Fast time to market
  • Excellent dynamic transient performance
  • Reduced BOM size & low system cost
  • Sophisticated fault handling
  • Housekeeping with configurable GPIOs
