AD7266BSUZ Dual 12-Bit ADC with 2 MSPS Throughput and Low Power Consumption

AD7266BSUZ Dual 12-Bit ADC with 2 MSPS Throughput and Low Power Consumption
AD7266BSUZ Dual 12-Bit ADC with 2 MSPS Throughput and Low Power Consumption

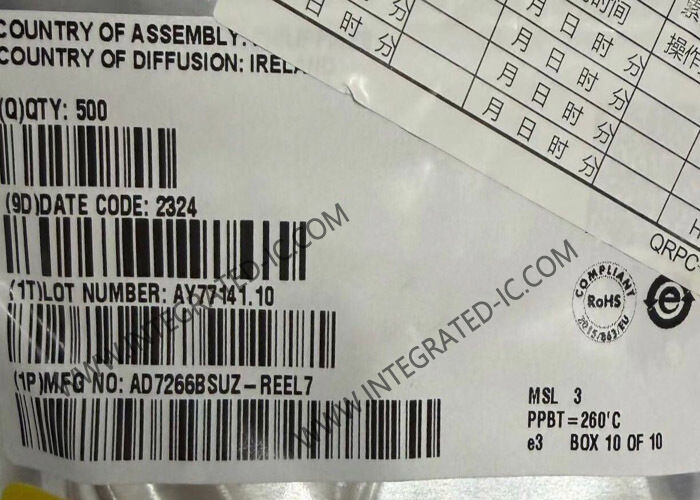

Large Image :  AD7266BSUZ Dual 12-Bit ADC with 2 MSPS Throughput and Low Power Consumption

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD7266BSUZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFP-32
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

AD7266BSUZ Dual 12-Bit ADC with 2 MSPS Throughput and Low Power Consumption

Description
Part Number: AD7266BSUZ Number Of Bits: 12
Sampling Rate (Per Second): 2M Number Of Inputs: 6, 12
Ratio - S/H:ADC: 1:1 Operating Temperature: -40°C ~ 125°C

AD7266BSUZ Integrated Circuit Chip Differential/Single-Ended Input Dual 12-Bit 3-Channel ADC

The AD7266BSUZ is a dual, 12-bit, high-speed, low-power successive approximation ADC that operates from a single 2.7V to 5.25V power supply and features throughput rates up to 2 MSPS. The device contains two ADCs, each preceded by a 3-channel multiplexer, and a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 30 MHz.

Specifications
Parameter Value
Resolution 12 bit
Number of Channels 6 Channel
Interface Type Microwire, QSPI, SPI
Sampling Rate 2 MS/s
Input Type Differential/Pseudo-Differential/Single-Ended
Architecture SAR
SNR - Signal to Noise Ratio 71 dB
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
DNL - Differential Nonlinearity -0.99 LSB/1.5 LSB
Gain Error ±2.5 LSB
INL - Integral Nonlinearity ±1.5 LSB
Moisture Sensitive Yes
Number of Converters 2 Converter
Pd - Power Dissipation 33.6 mW
Supply Voltage - Max 5.25 V
Supply Voltage - Min 2.7 V
Type S/H ADC
Unit Weight 72.800 mg
Key Features
  • Dual 12-bit, 3-channel ADC
  • Throughput rate: 2 MSPS
  • Specified for VDD of 2.7V to 5.25V
  • Power consumption: 9 mW at 1.5 MSPS with 3V supplies, 27 mW at 2 MSPS with 5V supplies
  • Pin-configurable analog inputs: 12-channel single-ended, 6-channel fully differential, or 6-channel pseudo differential inputs
  • 70 dB SNR at 50 kHz input frequency
  • Accurate on-chip reference: 2.5V ±0.2% maximum @ 25°C, 20 ppm/°C maximum
  • Dual conversion with read 437.5 ns, 32 MHz SCLK
  • High speed serial interface compatible with SPI/QSPI/MICROWIRE/DSP
  • Operating temperature range: -40°C to +125°C
  • Shutdown mode: 1 μA maximum
  • Available in 32-lead LFCSP and 32-lead TQFP packages
Product Highlights
  • Two complete ADC functions allow simultaneous sampling and conversion of two channels
  • Each ADC has three fully/pseudo differential pairs, or six single-ended channels, as programmed
  • Conversion results of both channels are simultaneously available on separate data lines
  • High throughput with low power consumption: 1.5 MSPS throughput rate with 11.4 mW maximum power dissipation at 3V
  • Offers both standard 0V to VREF input range and 2×V input range
  • No pipeline delay with standard successive approximation ADCs
  • Accurate control of sampling instant via CS input and once-off conversion control
