SPB17N80C3 Power MOSFET Transistor with 800V Drain-Source Voltage 17A Continuous Drain Current and CoolMOS™ Technology

SPB17N80C3 Power MOSFET Transistor with 800V Drain-Source Voltage 17A Continuous Drain Current and CoolMOS™ Technology
SPB17N80C3 Power MOSFET Transistor with 800V Drain-Source Voltage 17A Continuous Drain Current and CoolMOS™ Technology

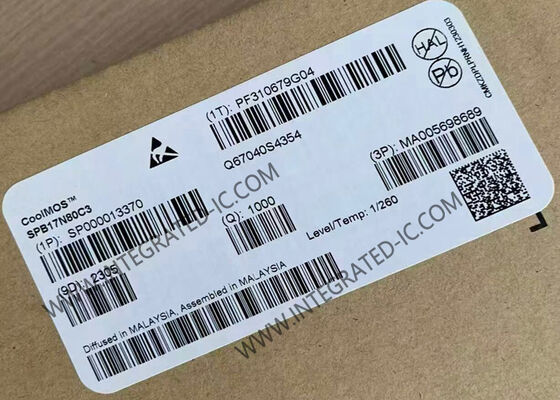

Large Image :  SPB17N80C3 Power MOSFET Transistor with 800V Drain-Source Voltage 17A Continuous Drain Current and CoolMOS™ Technology

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SPB17N80C3
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-263-3
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

SPB17N80C3 Power MOSFET Transistor with 800V Drain-Source Voltage 17A Continuous Drain Current and CoolMOS™ Technology

Description
Part Number: SPB17N80C3 Drain To Source Voltage (Vdss): 800 V
Current - Continuous Drain (Id) @ 25°C: 17A (Tc) Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V Operating Temperature: -55°C ~ 150°C (TJ)

SPB17N80C3 Integrated Circuit Chip N-Channel 800V 17A CoolMOS™ Power MOSFET Transistors
Product Description

SPB17N80C3 is an N-Channel 800V 17A CoolMOS™ Power MOSFET Transistor in TO-263-3 package.

Specifications
Transistor PolarityN-Channel
Number of Channels1 Channel
Vds - Drain-Source Breakdown Voltage800 V
Id - Continuous Drain Current17 A
Rds On - Drain-Source Resistance290 mOhms
Vgs - Gate-Source Voltage-20 V, 20 V
Vgs th - Gate-Source Threshold Voltage2.1 V
Qg - Gate Charge88 nC
Minimum Operating Temperature-55 °C
Maximum Operating Temperature+150 °C
Pd - Power Dissipation227 W
Channel ModeEnhancement
ConfigurationSingle
Fall Time12 ns
Product TypeMOSFETs
Rise Time15 ns
Transistor Type1 N-Channel
Typical Turn-Off Delay Time72 ns
Typical Turn-On Delay Time25 ns
Unit Weight4 g
Key Features
  • New revolutionary high voltage technology
  • Extreme dv/dt rated
  • High peak current capability
  • Qualified according to JEDEC for target applications
  • Pb-free lead plating; RoHS compliant
  • Ultra low gate charge
  • Ultra low effective capacitances
Applications
  • Industrial application with high DC bulk voltage
  • Switching Application (i.e. active clamp forward)
