CSD95410RRB Integrated Circuit Chip NexFET™ Smart Power Stage with 90A Peak Continuous Current High-Frequency Operation and Over 95% System Efficiency

CSD95410RRB Integrated Circuit Chip NexFET™ Smart Power Stage with 90A Peak Continuous Current High-Frequency Operation and Over 95% System Efficiency
CSD95410RRB Integrated Circuit Chip NexFET™ Smart Power Stage with 90A Peak Continuous Current High-Frequency Operation and Over 95% System Efficiency

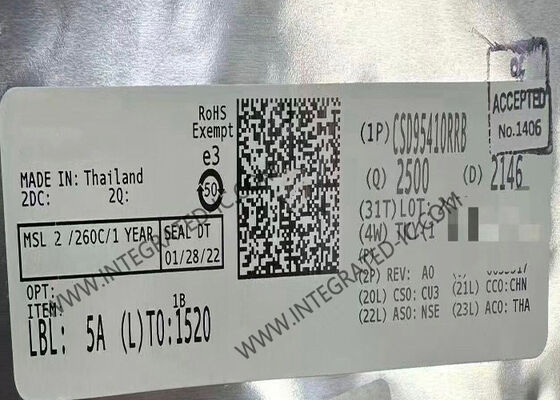

Large Image :  CSD95410RRB Integrated Circuit Chip NexFET™ Smart Power Stage with 90A Peak Continuous Current High-Frequency Operation and Over 95% System Efficiency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: CSD95410RRB
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VQFN-CLIP-41
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

CSD95410RRB Integrated Circuit Chip NexFET™ Smart Power Stage with 90A Peak Continuous Current High-Frequency Operation and Over 95% System Efficiency

Description
Part Number: CSD95410RRB Series: NexFET™
Output Configuration: Half Bridge Voltage - Supply: 2.97V ~ 3.6V
Peak Continuous Current: 90A Operating Temperature: -40°C ~ 125°C (TA)

CSD95410RRB Integrated Circuit Chip 90A Peak Continuous Synchronous Buck NexFET™ Smart Power Stage
Product Overview

CSD95410RRB NexFET™ power stage is a highly optimized design for use in high-power, high-density synchronous buck converters. This product integrates the driver IC and power MOSFETs to complete the power stage switching function, delivering high-current, high-efficiency, and high-speed switching capability in a compact 5-mm × 6-mm outline package.

Specifications
Series NexFET™
Output Configuration Half Bridge
Applications General Purpose
Interface Logic, PWM
Load Type Inductive, Capacitive
Technology Power MOSFET
Voltage Supply 2.97V ~ 3.6V
Operating Temperature -40°C ~ 125°C (TA)
Fault Protection Current Limiting, Over Current
Mounting Type Surface Mount
Package / Case 41-PowerTFQFN
Supplier Device Package 41-VQFN-CLIP (5x6)
Key Features
  • 90A peak continuous current
  • Over 95% system efficiency at 30 A
  • High-frequency operation (up to 1.75 MHz)
  • Diode emulation function
  • Temperature compensated bi-directional current sense
  • Analog temperature output
  • Fault monitoring
  • 3.3-V and 5-V PWM signal compatible
  • Tri-state PWM input
  • Integrated bootstrap switch
  • Optimized dead-time for shoot-through protection
  • High-density industry common QFN 5-mm × 6-mm footprint
  • Ultra-low-inductance package
  • System optimized PCB footprint
  • Thermally enhanced topside cooling
  • RoHS compliant: lead-free terminal plating
Applications
  • Multiphase synchronous buck converters
  • High-frequency applications
  • High-current, low-duty cycle applications
  • Point-of-load DC-DC converters
  • Memory and graphic cards
  • Desktop and server VR12.x / VR13.x / VR14.x Vcore synchronous buck converters
