HFBR-1414PTZ Optical Transmitter Integrated Circuit Chip with 160 MBd Data Rate and 820 nm Wavelength for Industrial Applications

HFBR-1414PTZ Optical Transmitter Integrated Circuit Chip with 160 MBd Data Rate and 820 nm Wavelength for Industrial Applications
HFBR-1414PTZ Optical Transmitter Integrated Circuit Chip with 160 MBd Data Rate and 820 nm Wavelength for Industrial Applications

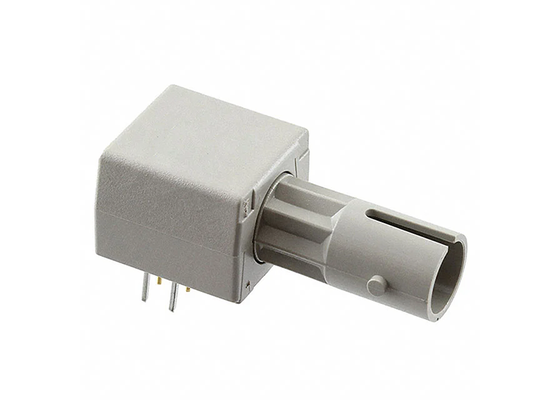

Large Image :  HFBR-1414PTZ Optical Transmitter Integrated Circuit Chip with 160 MBd Data Rate and 820 nm Wavelength for Industrial Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: HFBR-1414PTZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: DIP
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

HFBR-1414PTZ Optical Transmitter Integrated Circuit Chip with 160 MBd Data Rate and 820 nm Wavelength for Industrial Applications

Description
Part Number: HFBR-1414PTZ Wavelength: 820 Nm
Data Rate:: 160 MBd Rise Time:: 6.5 Ns

HFBR-1414PTZ Integrated Circuit Chip High Performance 160 MBd Optical Transmitter for Industrial Applications
The HFBR-1414PTZ optical transmitter is part of the Broadcom 820-nm Miniature Link Series of components designed to provide cost-effective, high performance fiber optic communication links for information systems and industrial applications with link distances up to several kilometers. When paired with the Broadcom HFBR-24x6Z, the 125 MHz analog receiver, data rates of up to 160 MBd can be attained.
Specifications
Product: Transmitters
Wavelength: 820 nm
Data Rate: 160 MBd
Fibre Type: Multimode
Rise Time: 6.5 ns
Emitting Source: LED
Operating Supply Voltage: 5 V
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +85 °C
Application: Ethernet
Features
  • RoHS compliant
  • Meets IEEE 802.3 Ethernet and 802.5 token ring standards
  • Meets TIA/EIA-785 100Base-SX standard
  • Low-cost transmitters
  • Choice of ST® ports
  • 820-nm wavelength technology
  • Signal rates up to 160 MBd
  • Link distances up to several kilometers
  • Compatible with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm Plastic-Clad Silica (PCS) Fiber
  • Repeatable ST connections within 0.2 dB typical
  • Unique optical port design for efficient coupling
  • Pick and place, and wave solderable
  • No board mounting hardware required
  • Wide operating temperature range -40 °C to +85 °C
Applications
  • 100Base-SX Fast Ethernet
  • Media/Fiber Conversion, Switches, Routers, Hubs and NICs on 100Base-SX
  • Local Area Networks
  • Computer-to-peripheral Links
  • Computer Monitor Links
  • Digital Cross Connect Links
  • Central Office Switch/PBX Links
  • Video Links
  • Modems and Multiplexers
  • Suitable for Tempest Systems
  • Industrial Control Links
