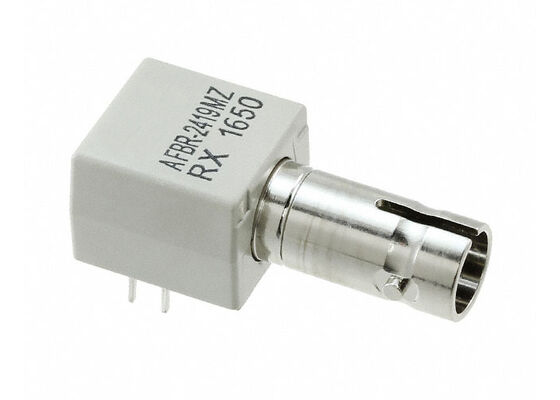

AFBR-2419MZ 50MBd Data Rate Fiber Optic Receiver with 820nm Wavelength and CMOS/TTL Output

The AFBR-2419MZ fiber optic receiver is engineered to operate with HFBR-14xxZ/-1712TZ fiber optic transmitters and multimode glass fiber cable. The optical system with lens ensures consistent coupling into the receiver. Featuring a digital CMOS/TTL signal output, this receiver incorporates an IC with integrated photodiode that directly converts incoming optical signals to digital output without requiring additional external circuitry.

Thanks to its integrated design, the receiver offers exceptional EMC resistance, wide dynamic range, and high sensitivity across temperature variations. It supports data rates from 100kBd to 50MBd and includes a monitor (RSSI) output that provides current proportional to average incoming light power.
