SC5008QFNR Integrated Circuit Chip 15W Power Stage IC with Voltage/Current Demodulation for WPC QI 1.3 & 2.0 Compliant Wireless Power Transmitters

SC5008QFNR Integrated Circuit Chip 15W Power Stage IC with Voltage/Current Demodulation for WPC QI 1.3 & 2.0 Compliant Wireless Power Transmitters
SC5008QFNR Integrated Circuit Chip 15W Power Stage IC with Voltage/Current Demodulation for WPC QI 1.3 & 2.0 Compliant Wireless Power Transmitters

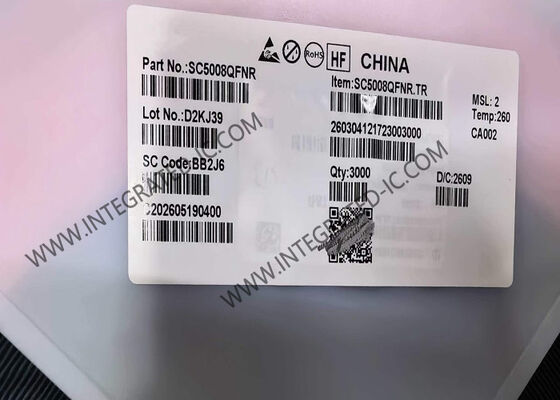

Large Image :  SC5008QFNR Integrated Circuit Chip 15W Power Stage IC with Voltage/Current Demodulation for WPC QI 1.3 & 2.0 Compliant Wireless Power Transmitters

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SC5008QFNR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-19
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

SC5008QFNR Integrated Circuit Chip 15W Power Stage IC with Voltage/Current Demodulation for WPC QI 1.3 & 2.0 Compliant Wireless Power Transmitters

Description
Part Number: SC5008QFNR Power Transfer: 15W
Abs. SW (max): 20V Input Voltage Range: 3.2V-18V
Rdson: 4 X 12mΩ Package: QFN-19 3mm X 4mm

SC5008QFNR Integrated Circuit Chip 15W Full-Bridge Power Stage With Voltage/Current Demodulation
Product Overview

SC5008QFNR is a 15W Full-Bridge Power Stage with Voltage/Current Demodulation for highly-integrated wireless power transmitter applications. This highly integrated analog-front-end contains all analog components required to implement a wireless power transmitter compliant with WPC specifications.

The device integrates a full-bridge power stage with low-RDS(on) MOSFETs, gate drivers, 5V & 3.3V LDOs, communication demodulators, and input current sensing circuit. When paired with a transmitter controller, it creates a high-performance, cost-effective wireless power transmitter system compliant with WPC QI 1.3 & 2.0 standards.

Technical Specifications
Maximum Output Power 15W
Input Voltage Range 3.2V - 18V
Absolute Switch Maximum 20V
RDS(on) 4 x 12mΩ
Package QFN-19 3mm x 4mm
Key Features
  • WPC QI 1.3 & 2.0 compliant
  • Input voltage range: 3.2V-18V
  • Support up to 15W power transfer
  • Integrated four 12mohm RDS(on) power MOSFETs
  • Integrated FET drivers and bootstrap circuits
  • Integrated 5V-100mA and 3.3V-80mA LDOs
  • Integrated accurate current sense for FOD
  • Integrated voltage and current demodulators
  • Compatible with 3.3V and 5V PWM logical signals
  • UVLO/OCP/SCP/OTP protection
  • Compact 3mm x 4mm QFN package
