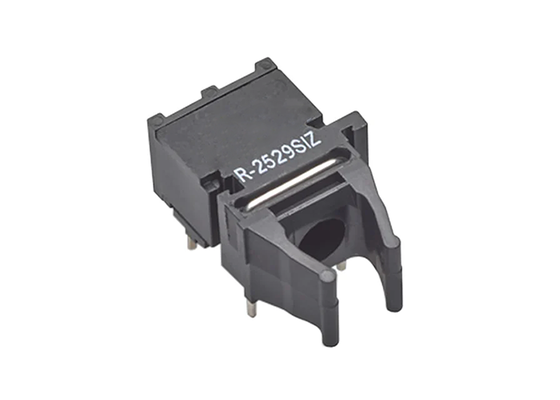

AFBR-2529SIZ Fiber-Optic Receiver with 50MBd Data Rate Versatile Link Family and Monitoring Output

The AFBR-2529SIZ receiver consists of an IC with an integrated photodiode providing a TTL logic family compatible output. The receiver operates with any type of signal from DC up to 50 MBd at distances up to 50m with 1 mm Polymer Optical Fiber (POF), up to 200m at 10 MBd and 120m at 50 MBd with 200 μm Plastic-Clad Silica (PCS).

• RoHS-compliant
• Analog monitoring output (RSSI)
• Data transmission at signal rates from DC up to 50 MBd
• Integrated PIN diode and digitalizing IC with TTL output logic
• Up to 50m distance with 1 mm POF over operating temperature range
• Up to 200m (10 MBd) distance and 120m (50 MBd) distance with 200 μm PCS over operating temperature range
• Operating temperature range of -40°C to +85°C
• Receiver power supply of 3.3V or 5.0V
• Compatible with the Versatile Link family of connectors for easy termination of fiber

• Optical receiver for 50-MBd systems and below
• Industrial control and factory automation
• Extension of RS-232 and RS-485
• High voltage isolation
• Elimination of ground loops
• Reduces voltage transient susceptibility
• Advanced maintenance management of optical links by monitoring the incoming optical receiver power
