Low Power 125MBd SFP Transceiver with 1310nm Wavelength Fiber Optic Transceiver Module

Low Power 125MBd SFP Transceiver with 1310nm Wavelength Fiber Optic Transceiver Module
Low Power 125MBd SFP Transceiver with 1310nm Wavelength Fiber Optic Transceiver Module

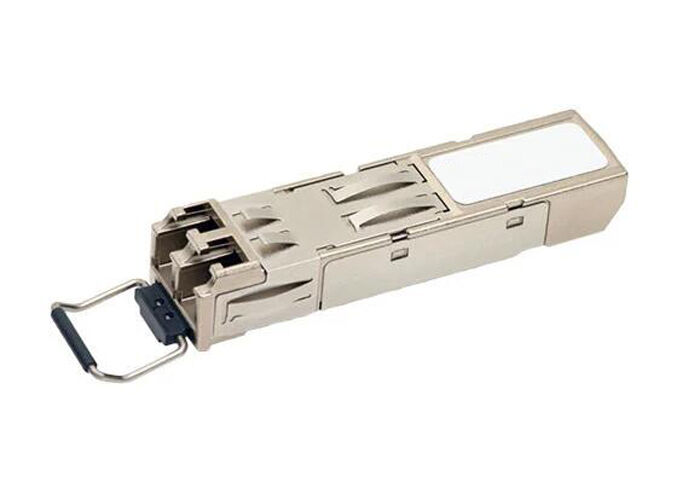

Large Image :  Low Power 125MBd SFP Transceiver with 1310nm Wavelength Fiber Optic Transceiver Module

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AFBR-57E6APZ-HT
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

Low Power 125MBd SFP Transceiver with 1310nm Wavelength Fiber Optic Transceiver Module

Description
Part Number: AFBR-57E6APZ-HT Data Rate: 125MBd
Wavelength: 1310nm Voltage - Supply: 3V ~ 3.6V
Connector Type: LC Duplex Mounting Type: Pluggable, SFP

AFBR-57E6APZ-HT Integrated Circuit Chip Low Power SFP Transceiver 125MBd SFP Fiber Optic Transceiver Module

The AFBR-57E6APZ-HT is a low power, 125MBd small form-factor pluggable (SFP) fiber optic transceiver module designed for Fast Ethernet and fiber distributed data interface (FDDI) applications. This device features an LC duplex connector optical interface and includes digital diagnostic monitoring interface (DMI) capabilities.

The transceiver is compatible with SFF-8074i for conventional SFP interface and SFF-8472 for DMI. Through 2-wire serial communications as defined in the SFF-8472 MSA, the AFBR-57E6APZ-HT provides real-time monitoring of temperature, LED bias current, LED average output power, receiver average input power, and receiver loss of signal (RX_LOS).

Specifications
Product Transceivers
Wavelength 1310 nm
Data Rate 125 MBd
Fiber Type Multimode
Form Factor SFP
Rise Time 3 ns
Emitting Source LED
Operating Supply Voltage 3.3 V
Operating Temperature Range -40 ℃ to +95 ℃
Application Ethernet
Connector Type LC
Transmission Distance 2 km
Fall Time 1 ns
Mounting Style Panel Mount
Package / Case SFP-20
Key Features
  • Low power consumption: 255 mW (typ), 405 mW (max)
  • Extended operating temperature: -40 °C to +95 °C
  • Link distances up to 2 km
  • Operates on 50/125um and 62.5/125um multimode fiber (MMF)
  • LC duplex connector optical interface
  • Built-in DMI providing real-time monitoring of temperature, LED bias current, LED average output power and receiver average input power
  • Squelched receiver outputs
  • Bail de-latch
  • Hot plug capability
  • Compatible with SFF-8074i and SFF-8472 MSA specifications
  • Compatible with 100BASE-FX version of IEEE 802.3u
  • RoHS-compliant and lead-free
Applications
  • Industrial / Factory Automation
  • Motor Controls
  • Fast Ethernet Networking
  • FDDI Networking
