AR49-M49M-B12H 49Bit Optical Absolute Encoder Module with Energy-Harvesting Multi-Turn Counter and High-Temperature Range

Description
Part Number: AR49-M49M-B12H Resolution: 49 Bit
Shaft Diameter: 6 Mm Termination Style: Screw
Operating Supply Voltage: 4.5 V To 5.5 V Operating Temperature: -40°C ~ 115°C

AR49-M49M-B12H Integrated Circuit Chip Absolute Reflective Encoder Module 49Bit Optical Absolute Encoder Module
Product Description

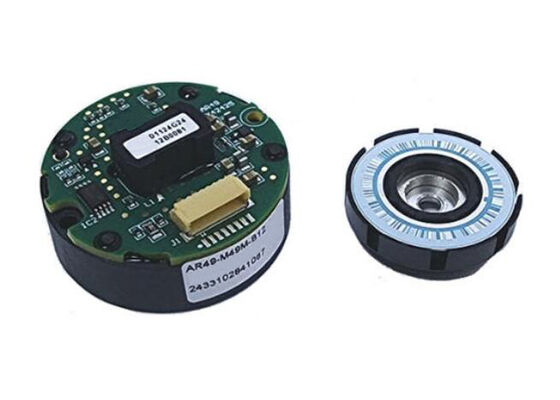

The AR49-M49M-B12H is an Absolute Reflective Encoder Module with Energy-Harvesting Multi-Turn Counter, offering up to 25-bit single-turn (ST) position information and 24-bit multi-turn (MT) counts, providing a combined 49-bit high-resolution output.

This module operates within a recommended high-temperature range of -40°C to 115°C. Its multi-turn tracking employs proprietary energy-harvesting (EH) technology by harvesting magnetic energy while the patterned disk with magnet rotates.

Specifications
Mounting Style Screw Mount
Product Type Optical Encoders
Encoder Type Reflective Encoder Module
Resolution 49 bit
Technology Reflective
Number of Detents No Detent
Termination Style Screw
Shaft Diameter 6 mm
Operating Supply Voltage 4.5 V to 5.5 V
Maximum Operating Temperature +115 ℃
Minimum Operating Temperature -40 ℃
Orientation Horizontal
Key Features
  • 24-bit energy-harvesting multi-turn and 25-bit optical single-turn
  • Accuracy upon calibration of ±30 arc-seconds
  • Encoder fault and status bits with CRC
  • Integrated differential transceiver for SSI/BiSS-C/RS485 communication protocols
  • Single-ended Serial Protocol Interface (SPI 4-wire option)
  • Overall encoder outer diameter of Ø35 mm and maximum height of 17.5 mm
  • 8K bits of user-accessible memory in EEPROM
  • Immediate position detection on power-up; no battery or capacitor required for position detection during power failure
  • RoHS compliant
Applications
  • AC/DC servo motor feedback
  • Medical and laboratory equipment
  • Robotics
  • Factory automation
