IRFB7430PBF 40V N-Channel Power MOSFET with 409A Drain Current and 375W Dissipation

IRFB7430PBF 40V N-Channel Power MOSFET with 409A Drain Current and 375W Dissipation
IRFB7430PBF 40V N-Channel Power MOSFET with 409A Drain Current and 375W Dissipation

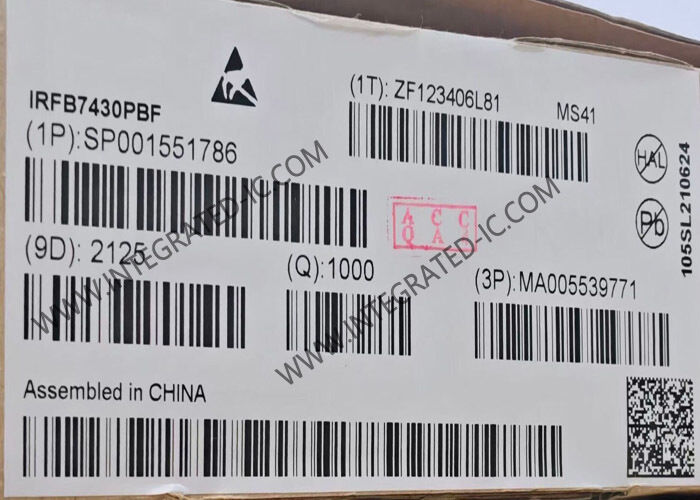

Large Image :  IRFB7430PBF 40V N-Channel Power MOSFET with 409A Drain Current and 375W Dissipation

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IRFB7430PBF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-220-3
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IRFB7430PBF 40V N-Channel Power MOSFET with 409A Drain Current and 375W Dissipation

Description
Part Number: IRFB7430PBF Drain To Source Voltage: 40 V
Operating Temperature: -55°C ~ 175°C (TJ) Power Dissipation: 375W (Tc)
Vgs (Max): ±20V FET Type: N-Channel

IRFB7430PBF Integrated Circuit Chip 40V Single N-Channel StrongIRFET™ Power MOSFET Transistors

IRFB7430PBF Integrated Circuit Chip 40V Single N-Channel StrongIRFET™ Power MOSFET Transistors

The IRFB7430PBF StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. These devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Specifications
Parameter Value
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 40 V
Id - Continuous Drain Current 409 A
Rds On - Drain-Source Resistance 1.3 mOhms
Vgs - Gate-Source Voltage -20 V, 20 V
Vgs th - Gate-Source Threshold Voltage 1.8 V
Qg - Gate Charge 460 nC
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +175 °C
Pd - Power Dissipation 375 W
Channel Mode Enhancement
Unit Weight 2 g
Features
  • High-current rating
  • Product qualification according to JEDEC standard
  • Silicon optimized for switching <100 kHz
  • Softer body-diode vs previous silicon generation
  • Industry standard through-hole power package
  • Wide portfolio available
Benefits
  • High-current carrying capability package
  • Industry standard qualification level
  • High performance, low-frequency operation
  • Increased power density
  • Drop-in replacement with standard pinout
  • Flexibility for optimal device selection
Applications
  • Fuel-cell control unit (FCCU)
  • Offline UPS - high frequency transformer
