AR49-M49M-S12H Absolute Reflective Encoder Module with 49-bit Resolution and Energy-Harvesting Multi-Turn Counter for Wide Temperature Range

Description
Part Number: AR49-M49M-S12H Resolution: 49 Bit
Shaft Diameter: 6 Mm Termination Style: Screw
Operating Supply Voltage: 4.5 V To 5.5 V Operating Temperature: -40°C ~ 115°C

AR49-M49M-S12H Integrated Circuit Chip Absolute Reflective Encoder Module With Energy-Harvesting Multi-Turn Counter
Product Overview

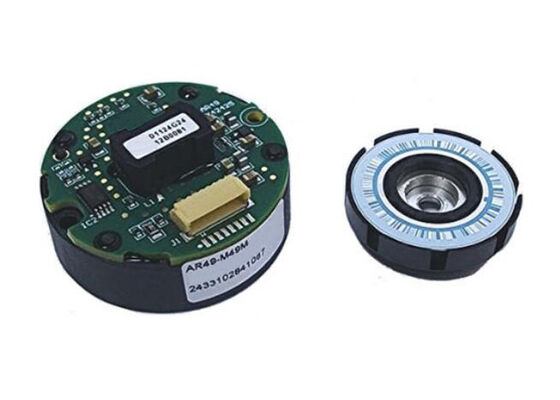

AR49-M49M-S12H is an optical absolute encoder module that offers up to 25-bit single-turn (ST) position information and 24-bit multi-turn (MT) counts, providing a combined 49-bit high-resolution output. It features an operating temperature range of -40°C to 115°C and employs proprietary energy-harvesting technology that captures magnetic energy during rotation.

Specifications
Mounting Style Screw Mount
Product Type Optical Encoders
Type Reflective Encoder Module
Resolution 49 bit
Technology Reflective
Number of Detents No Detent
Termination Style Screw
Shaft Diameter 6 mm
Operating Supply Voltage 4.5 V to 5.5 V
Maximum Operating Temperature +115 ℃
Minimum Operating Temperature -40 ℃
Orientation Horizontal
Key Features
  • 24-bit energy-harvesting multi-turn and 25-bit optical single-turn
  • Accuracy upon calibration of ±30 arc-seconds
  • Encoder fault and status bits with CRC
  • Integrated differential transceiver for SSI/BiSS-C/RS485 communication protocols
  • Single-ended Serial Protocol Interface (SPI 4-wire option)
  • Overall encoder outer diameter of Ø35 mm and maximum height of 17.5 mm
  • 8K bits of user-accessible memory in EEPROM
  • Immediate position detection on power-up; no battery or capacitor required
  • RoHS compliant
Applications
  • AC/DC servo motor feedback
  • Medical and laboratory equipment
  • Robotics
  • Factory automation
