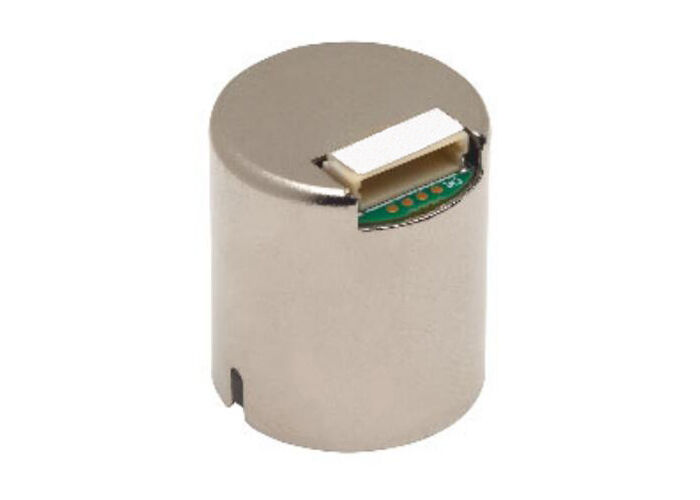

AS20-M42M-P11 42 Bit Miniature Magnetic Absolute Encoder with Energy Harvesting Technology

AS20-M42M-P11 42 Bit Miniature Magnetic Absolute Encoder with Energy Harvesting Technology
AS20-M42M-P11 42 Bit Miniature Magnetic Absolute Encoder with Energy Harvesting Technology

Large Image :  AS20-M42M-P11 42 Bit Miniature Magnetic Absolute Encoder with Energy Harvesting Technology

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AS20-M42M-P11
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AS20-M42M-P11 42 Bit Miniature Magnetic Absolute Encoder with Energy Harvesting Technology

Description
Part Number: AS20-M42M-P11 Encoder Type: Absolute, Magnetic
Voltage - Supply: 4.5V ~ 5.5V Resolution: 42 Bit
Size / Dimension: 20 Mm X 22.5 Mm Operating Temperature: -40°C ~ 115°C

AS20-M42M-P11 Integrated Circuit Chip 4-Wire Miniature Encoder 42Bit Magnetic Absolute Kit Encoder
Product Description

The AS20-M42M-P11 Miniature Encoder is a magnetic sensing absolute multi-turn encoder kit based on Broadcom's proprietary Energy Harvesting (EH) technologies. The EH Multi-Turn (EHMT) offers battery-less and non-gear based solutions, eliminating the need for maintenance and contamination prevention.

Specifications
Mounting Style Screw Mount
Product Encoders
Type Miniature Encoder
Resolution 42 bit
Technology Magnetic
Number of Detents No Detent
Termination Style Connector
With Switch Without Switch
Operating Supply Voltage 4.5 V to 5.5 V
Maximum Operating Temperature +115 ℃
Minimum Operating Temperature -40 ℃
Orientation Vertical
Product Type Encoders
Size / Dimension 20 mm x 22.5 mm
Key Features
  • Patented Energy Harvesting technology
  • All magnetic 18-bit single-turn (ST) and 32-bit multi-turn (MT) for a 50-bit combined resolution
  • Overall diameter Ø20 mm
  • Wide operating temperature range -40°C to 115°C
  • SSI/RS-485/BiSS-C with integrated differential line transceivers
  • SPI 4-Wire single-ended output
  • Up to 10 Mb/s communication clock rate
  • Easy integration with miniature motors
  • RoHS compliant
Applications
  • Miniature servo motors and drives
  • Linear actuator
  • Medical and laboratory equipment
  • Robotics
  • Automated guided vehicles (AGV)
  • Factory automation
