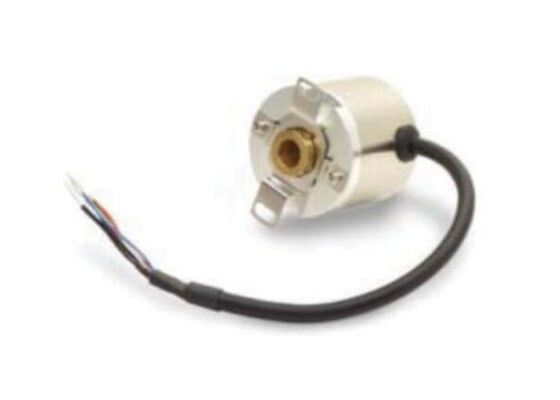

AS38-H39E-S13S Integrated Circuit Chip 39-bit Energy-Harvesting Multi-Turn Absolute Encoder with Hollow Shaft

AS38-H39E-S13S Integrated Circuit Chip 39-bit Energy-Harvesting Multi-Turn Absolute Encoder with Hollow Shaft
AS38-H39E-S13S Integrated Circuit Chip 39-bit Energy-Harvesting Multi-Turn Absolute Encoder with Hollow Shaft

Large Image :  AS38-H39E-S13S Integrated Circuit Chip 39-bit Energy-Harvesting Multi-Turn Absolute Encoder with Hollow Shaft

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AS38-H39E-S13S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AS38-H39E-S13S Integrated Circuit Chip 39-bit Energy-Harvesting Multi-Turn Absolute Encoder with Hollow Shaft

Description
Part Number: AS38-H39E-S13S Resolution: 39 Bit
Number Of Channels: 2 Channel Shaft Diameter: 8 Mm
Voltage - Supply: 5V Termination Style: Wire Leads

AS38-H39E-S13S Integrated Circuit Chip 39-Bit Energy-Harvesting Multi-Turn Absolute Encoder
Product Description

AS38-H39E-S13S is a high-resolution optical absolute encoder that offers 23-bit single-turn and 16-bit multi-turn counts, providing a combined 39-bit high resolution. The AS38-H39E series encoder consists of a patterned disk, light source, and photosensitive elements to translate mechanical motion into electrical signals.

Specifications
Mounting Style Panel Mount
Product Optical Encoders
Type Absolute
Resolution 39 bit
Technology Rotary
Number of Detents No Detent
Number of Channels 2 Channel
Termination Style Wire Leads
Output Type Binary Coded Decimal (BCD)
Shaft Diameter 8 mm
Shaft Type Hollow
With Switch Without Switch
Operating Supply Voltage 5 VDC
Key Features
  • 39-bit resolution: 16-bit energy-harvesting multi-turn and 23-bit optical single-turn
  • Built-in communication protocol (optional): BiSS C mode, SSI mode, and RS-485 half-duplex
  • Overall encoder outer diameter Ø38 mm and maximum height of 40 mm
  • Supporting ¼ inch, 6-mm and 8-mm diameter of the blind hollow shaft
Applications
  • Robotics
  • Factory automation
  • Linear positioning system
  • CNC machine tool
  • Medical and lab equipment
