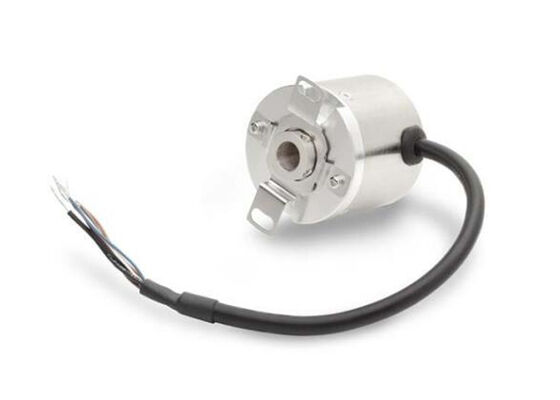

AS38-H39E-B13S 39-Bit Energy-Harvesting Multi-Turn Optical Absolute Encoder with Hollow Shaft

AS38-H39E-B13S 39-Bit Energy-Harvesting Multi-Turn Optical Absolute Encoder with Hollow Shaft
AS38-H39E-B13S 39-Bit Energy-Harvesting Multi-Turn Optical Absolute Encoder with Hollow Shaft

Large Image :  AS38-H39E-B13S 39-Bit Energy-Harvesting Multi-Turn Optical Absolute Encoder with Hollow Shaft

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AS38-H39E-B13S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AS38-H39E-B13S 39-Bit Energy-Harvesting Multi-Turn Optical Absolute Encoder with Hollow Shaft

Description
Part Number: AS38-H39E-B13S Resolution: 39 Bit
Number Of Channels: 2 Channel Shaft Diameter: 8 Mm
Operating Supply Voltage: 5 VDC Operating Temperature: -20°C ~ 105°C

AS38-H39E-B13S Integrated Circuit Chip High Resolution 39-Bit Energy-Harvesting Multi-Turn Optical Absolute Encoder
Product Overview

The AS38-H39E-B13S is a high-resolution, 39-bit energy-harvesting multi-turn absolute encoder. This housed encoder consists of a patterned disk, light source, and photosensitive elements that translate mechanical motion into electrical signals.

The device features a built-in communication protocol supported by full-duplex or half-duplex line transmission drive, offering excellent noise immunity for robust data transmission up to 10 Mb/s in harsh industrial applications.

Specifications
Mounting Style Panel Mount
Product Optical Encoders
Type Absolute
Resolution 39 bit
Technology Rotary
Number of Detents No Detent
Number of Channels 2 Channel
Termination Style Wire Leads
Output Type Binary Coded Decimal (BCD)
Shaft Diameter 8 mm
Shaft Type Hollow
With Switch Without Switch
Operating Supply Voltage 5 VDC
Maximum Operating Temperature +105 ℃
Minimum Operating Temperature -20 ℃
Product Type Encoders
Size / Dimension 38 mm x 40 mm
Key Features
  • 39-bit resolution: 16-bit energy-harvesting multi-turn and 23-bit optical single-turn
  • Built-in communication protocol (optional): BiSS C mode, SSI mode, and RS-485 half-duplex
  • Overall encoder outer diameter Ø38 mm and maximum height of 40 mm
  • Supporting ¼ inch, 6-mm and 8-mm diameter of the blind hollow shaft
Applications
  • Robotics
  • Factory automation
  • Linear positioning system
  • CNC machine tool
  • Medical and lab equipment
