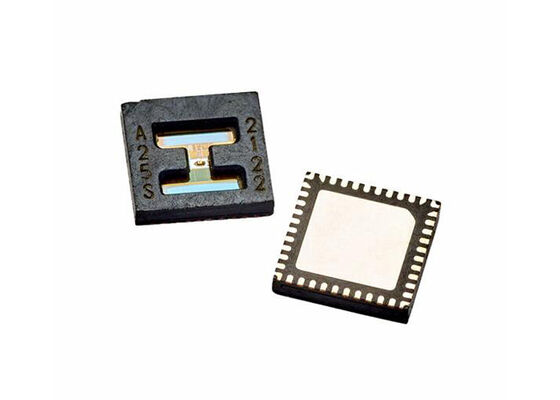

Large Image :  AR25DP-AB01 25-Bit Absolute Encoder ASIC with High Temperature Range and Dual-mode Operating Voltages

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AR25DP-AB01
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-40
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AR25DP-AB01 25-Bit Absolute Encoder ASIC with High Temperature Range and Dual-mode Operating Voltages

Description
Part Number: AR25DP-AB01 Number Of Bits: 25 Bit
Dual-mode Operating Voltages: 3.3V And 5V High Temperature Range: –40°C To 125°C
Package / Case: QFN-40 Size: 6 Mm (L) × 6 Mm (W) × 0.7 Mm (H)

AR25DP-AB01 Integrated Circuit Chip Smart Programmable 25-Bit Absolute Encoder ASIC
Product Overview

AR25DP-AB01 is a miniature absolute encoder ASIC designed for space-constrained applications. Utilizing advanced reflective optical encoding technology, the AR25DP series delivers superior positional accuracy through correction algorithms that magnetic encoders cannot achieve.

Specifications
Product Encoder
Package / Case QFN-40
Number of Bits 25 bit
Supply Voltage - Min 3 V
Supply Voltage - Max 5.5 V
Mounting Style SMD/SMT
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Product Type Encoders, Decoders, Multiplexers & Demultiplexers
Key Features
  • Miniature surface-mount QFN package: 6 mm (L) × 6 mm (W) × 0.7 mm (H)
  • User-programmable resolutions:
    • Absolute output: 15 bits to 25 bits
    • Incremental (ABI) output: 1 CPR to 220 CPR
    • Commutation signals (UVW): 1 to 32 pole pairs
  • High temperature range of -40°C to 125°C
  • Dual-mode operating voltages of 3.3V and 5V
  • Multi-turn integration: EHMT, gear, or battery backup
  • Optical radius (ROP) flexibility: Blind hollow or through hole
    • Code wheel ID up to 30 mm
  • Built-in line transceiver for protocol with selectable driveability strength
  • Easy signal optimization with calibration built in
  • Accuracy calibration with constant speed rotation or reference encoder
  • Selectable communication protocols:
    • RS-485 (2.5/5/10 Mb/s)
    • ESL (2.5/5/10 Mb/s)
    • SSI 2-wire (up to 10 MHz)
    • SPI 4-wire (up to 10 MHz)
    • BiSS-C (up to 10 MHz)
  • Up to 128 Kb of external user-accessible EEPROM memory
  • Built-in temperature sensor
  • RoHS compliant
Applications
  • Robotic automation and engineering
  • Factory automation and drones
  • Medical and dentistry devices and equipment
  • High-accuracy portable and handheld devices
  • Miniature motor, servo motor, and linear actuator
  • Through-shaft motor, gear motor, and speed reducer
