AR55-AB01 32-Bit BiSS-C Protocol Absolute Encoder ASIC with QFN-40 Package and High Temperature Range

Description
Part Number: AR55-AB01 Number Of Bits: 32 Bit
Technology Type: Absolute Reflective Package / Case: QFN-40
Voltage - Supply: 3.3V ~ 5V Operating Temperature: -40°C ~ 115°C

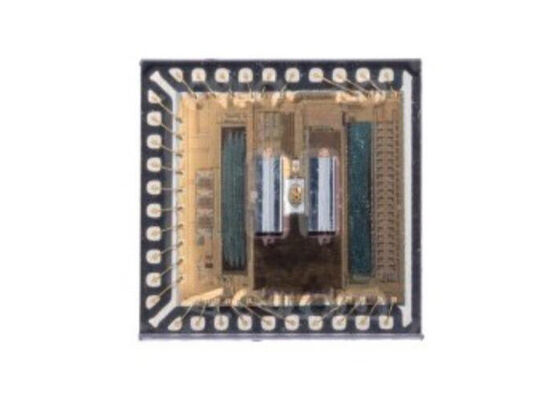

AR55-AB01 Integrated Circuit Chip BiSS-C Protocol Series 32-Bit Absolute Encoder ASIC QFN-40
AR55-AB01 is a 32-Bit BiSS-C Protocol Programmable Large Diameter or Linear Absolute Encoder IC with Optional Incremental Output. It is a versatile absolute encoder ASIC designed to meet the growing demand for large-diameter through-hollow shaft and linear applications. It offers a one-chip solution with the flexibility to support a wide range of overall product diameters, from 65 mm to 2682 mm.
Specifications
Product Encoders
Package / Case QFN-40
Number of Bits 32 bit
Supply Voltage - Min 3 V
Supply Voltage - Max 5.5 V
Mounting Style SMD/SMT
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Key Features
  • Miniature surface-mount QFN package: 6 mm (L) × 6 mm (W) × 0.7 mm (H)
  • User-programmable resolution:
    • Absolute output: 1 bit to 32 bits
    • Incremental (ABI) output: 1 CPR to 226 CPR
    • Commutation signals (UVW): 1 to 32 pole pairs
  • High temperature range: -40°C to 125°C
  • Dual-mode operating voltage: 3.3V and 5V
  • Multi-turn integration: EHMT, gear, or battery backup
  • Optical radius (ROP) flexibility: blind-hollow, through-hole, or linear application
    • ROP range: 25 mm to 1335 mm
    • Linear code strip pattern length: 18.2 mm to 8.33m
  • Built-in line transceiver for protocol with selectable driveability strength
  • Built-in calibration:
    • Full-code or partial-code signal calibration
    • Accuracy calibration with constant speed rotation or with a reference encoder
  • Selectable communication protocols:
    • RS-485 2.5/5/10 Mb/s
    • ESL 2.5/5/10 Mb/s
    • SSI 2-wire up to 10 MHz
    • SPI 4-wire up to 10 MHz
    • BiSS-C up to 10 MHz
  • Up to 128 Kb of external user-accessible EEPROM memory
  • Built-in temperature sensor
  • RoHS compliant
Applications
  • Robotics automation and engineering
  • Industrial servo motors and linear actuators
  • Through-shaft motor, gear motor, and speed reducer
  • Factory automation and drones
  • Medical and laboratory equipment
