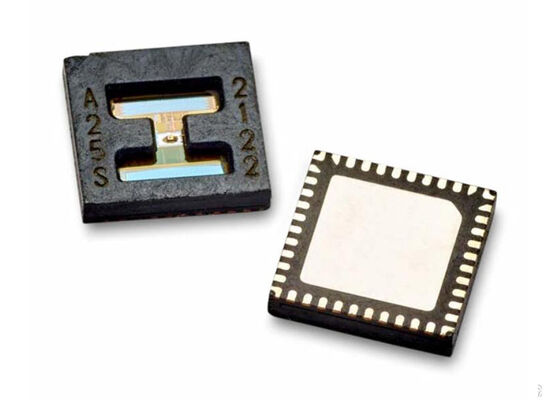

AR25-AB01 Integrated Circuit Chip 25-Bit Reflective Absolute Single-Turn Encoder QFN-40

Description
Part Number: AR25-AB01 Number Of Bits: 25 Bit
Output Type: BiSS-C Package / Case: QFN-40
Voltage - Supply: 3.3V ~ 5V Operating Temperature: -40°C ~ 125°C

AR25-AB01 Integrated Circuit Chip 25-Bit Reflective Absolute Single-Turn Encoder QFN-40
Product Overview

AR25-AB01 is a Smart Programmable 25-Bit Reflective Absolute Single-Turn Encoder designed for space-constrained applications. This one-chip solution offers flexibility for variable overall diameters ranging from 30 mm to 60 mm and supports through-hole solutions up to 30 mm in diameter. User-programmable resolutions range from 15-bit to 25-bit single-turn absolute outputs.

Specifications
Product Category Encoders, Decoders, Multiplexers & Demultiplexers
Product Encoder
Logic Family AR25
Package / Case QFN-40
Number of Bits 25 bit
Output Type BiSS-C
Supply Voltage - Min 3.3 V, 4.5 V
Supply Voltage - Max 3.6 V, 5.5 V
Mounting Style SMD/SMT
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +125 ℃
Key Features
  • Miniature surface-mount QFN package: 6 mm (L) × 6 mm (W) × 1.05 mm (H)
  • User-programmable absolute resolution: 15 bits to 25 bits
  • User-programmable incremental output (ABI) resolutions ranging from 1 CPR to 220 CPRs
  • User-programmable commutation signals (UVW), ranging from 1 to 32 pole-pairs
  • High-temperature range of -40°C to 125°C suitable for most industrial operations
  • Dual-mode operating voltages of 3.3V and 5V, enabling handheld and portable device applications
  • Multi-turn integration: EHMT, gear, or battery backup
  • Optical radius (ROP) flexibility: Blind-hollow or through-shaft applications
  • Built-in line transceiver for protocol with selectable drivability strength
  • Auto-accuracy calibration with a constant speed that is one click away
  • Selectable communication protocols: RS485 (2.5/5/10 Mb/s), ESL (2.5/5/10 Mb/s), SSI 2-wire (up to 10 MHz), SPI 4-wire (up to 10 MHz), BiSS-C (up to 10 MHz)
  • External memory support up to 128 Kb
  • Built-in temperature sensor
  • RoHS compliant
Applications
  • Robotic automation and engineering
  • Factory automation and drones
  • Medical and dentistry devices and equipment
  • High-accuracy portable and handheld devices
  • Miniature motor, servo motor, and linear actuator
  • Through-shaft motor, gear motor, and speed reducer
