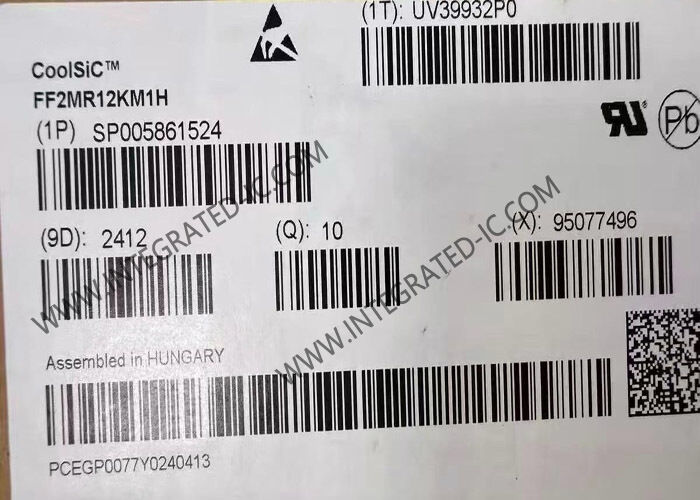

FF2MR12KM1H 1200V 500A CoolSiC™ MOSFET Half Bridge Module with Silicon Carbide Technology

FF2MR12KM1H 1200V 500A CoolSiC™ MOSFET Half Bridge Module with Silicon Carbide Technology
FF2MR12KM1H 1200V 500A CoolSiC™ MOSFET Half Bridge Module with Silicon Carbide Technology

Large Image :  FF2MR12KM1H 1200V 500A CoolSiC™ MOSFET Half Bridge Module with Silicon Carbide Technology

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: FF2MR12KM1H
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MODULE
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

FF2MR12KM1H 1200V 500A CoolSiC™ MOSFET Half Bridge Module with Silicon Carbide Technology

Description
Part Number: FF2MR12KM1H Technology: Silicon Carbide (SiC)
Drain To Source Voltage (Vdss): 1200V (1.2kV) Current - Continuous Drain (Id) @ 25°C: 500A (Tc)
Gate Charge (Qg) (Max) @ Vgs: 1340nC @ 15V Operating Temperature: -40°C ~ 150°C (TJ)

FF2MR12KM1H Integrated Circuit Chip 1200V CoolSiC™ MOSFET Half Bridge Module
Product Description

The FF2MR12KM1H is a 1200V, 62mm C-Series CoolSiC™ MOSFET half bridge module in the well-known 62mm housing combined with M1H chip technology. Also available with pre-applied Thermal Interface Material.

Specifications
Parameter Value
Series CoolSiC™
Technology Silicon Carbide (SiC)
Configuration 2 N-Channel (Half Bridge)
Drain to Source Voltage (Vdss) 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C 500A (Tc)
Rds On (Max) @ Id, Vgs 2.13mOhm @ 500A, 15V
Vgs(th) (Max) @ Id 5.15V @ 224mA
Gate Charge (Qg) (Max) @ Vgs 1340nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds 39700pF @ 800V
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package AG-62MM
Features
  • Electrical features: VDSS = 1200 V, IDN = 420 A / IDRM = 840 A, High current density, Low switching losses
  • Mechanical features: 4 kV AC 1 min insulation
  • High current density
  • Low switching losses
  • Superior gate oxide reliability
  • Highest robustness against humidity
  • Robust integrated body diode
  • High cosmic ray robustness
  • High speed switching module
  • Symmetrical module design
  • Standard construction technique
Applications
  • Solar applications
  • DC/DC converter
  • High-frequency switching application
  • Energy storage systems
  • DC charger for EV
  • Battery energy storage (BESS)
  • EV charging
  • Photovoltaic
  • Uninterruptible power supplies (UPS)
