EP9301-CQZ Integrated Circuit Chip with 166MHz ARM920T Core System-On-Chip Processor in LQFP-208 Package

EP9301-CQZ Integrated Circuit Chip with 166MHz ARM920T Core System-On-Chip Processor in LQFP-208 Package
EP9301-CQZ Integrated Circuit Chip with 166MHz ARM920T Core System-On-Chip Processor in LQFP-208 Package

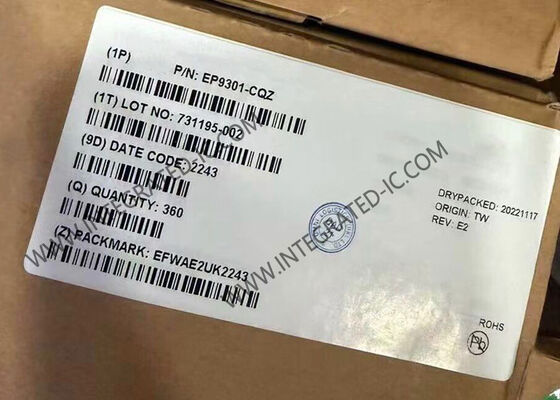

Large Image :  EP9301-CQZ Integrated Circuit Chip with 166MHz ARM920T Core System-On-Chip Processor in LQFP-208 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: EP9301-CQZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-208
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

EP9301-CQZ Integrated Circuit Chip with 166MHz ARM920T Core System-On-Chip Processor in LQFP-208 Package

Description
Part Number: EP9301-CQZ Core Processor: ARM920T
Number Of Cores/Bus Width: 1 Core, 32-Bit Speed: 166MHz
Voltage - I/O: 1.8V, 3.3V Operating Temperature: 0°C ~ 70°C (TA)

EP9301-CQZ Integrated Circuit Chip Entry-level ARM9 System-On-Chip Processor LQFP-208

EP9301-CQZ is a high-performance, low-power RISC-based, single-chip computer built around an ARM920T microprocessor core with a maximum operating clock rate of 166 MHz. The ARM core operates from a 1.8 V supply, while the I/O operates at 3.3 V with power usage between 100 mW and 675 mW.

Specifications
Core ARM920T
Number of Cores 1 Core
Data Bus Width 32 bit
Maximum Clock Frequency 166 MHz
Package / Case LQFP-208
L1 Cache Instruction Memory 16 kB
L1 Cache Data Memory 16 kB
Operating Supply Voltage 1.8 V
Mounting Style SMD/SMT
Minimum Operating Temperature 0 ℃
Maximum Operating Temperature +70 ℃
I/O Voltage 3.3 V
Interface Type Audio, Ethernet, I2S, IrDA, SPI, UART, USB
Memory Type L1 Cache
Number of I/Os 37 I/O
Key Features
  • 166-MHz ARM920T Processor
  • 16-kbyte Instruction Cache
  • 16-kbyte Data Cache
  • Linux®, Microsoft® Windows® CE, enabled MMU
  • 66-MHz System Bus
  • MaverickKey™ IDs
  • 32-bit unique ID can be used for DRM-compliant, 128-bit random ID
  • Integrated Peripheral Interfaces
  • 16-bit SDRAM Interface (up to 4 banks)
  • 16-bit SRAM / FLASH / ROM
  • Serial EEPROM Interface
  • 1/10/100 Mbps Ethernet MAC
  • Two UARTs
  • Two-port USB 2.0 Full-speed Host (OHCI) (12 Mbits per second)
  • IrDA Interface
  • ADC
  • Serial Peripheral Interface (SPI) Port
  • 6-channel Serial Audio Interface (I2S)
  • 2-channel Low-cost Serial Audio Interface (AC'97)
  • Internal Peripherals
  • 12 Direct Memory Access (DMA) Channels
  • Real-time Clock with software Trim
  • Dual PLL controls all clock domains
  • Watchdog Timer
  • Two General-purpose 16-bit Timers
  • One General-purpose 32-bit Timer
  • One 40-bit Debug Timer
  • Interrupt Controller
  • Boot ROM
  • Package: 208-pin LQFP
Applications
  • Industrial controls
  • Digital media servers
  • Integrated home media gateways
  • Digital audio jukeboxes
  • Streaming audio players
  • Set-top boxes
  • Point-of-sale terminals
  • Thin clients
  • Biometric security systems
  • GPS & fleet management systems
  • Educational toys
  • Industrial computers
  • Industrial hand-held devices
  • Voting machines
  • Medical equipment
