AD7485BSTZ 14-Bit 1M Sampling Rate SAR Analog to Digital Converter IC Chip LQFP-48

AD7485BSTZ 14-Bit 1M Sampling Rate SAR Analog to Digital Converter IC Chip LQFP-48
AD7485BSTZ 14-Bit 1M Sampling Rate SAR Analog to Digital Converter IC Chip LQFP-48

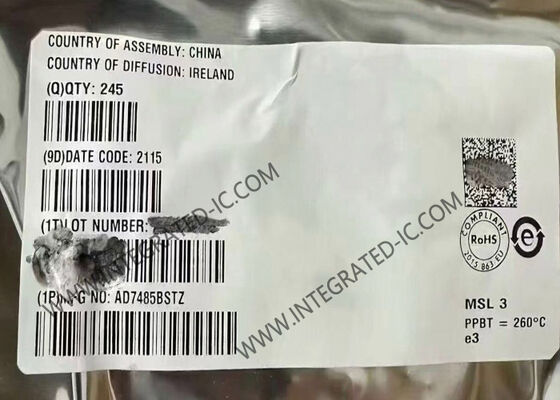

Large Image :  AD7485BSTZ 14-Bit 1M Sampling Rate SAR Analog to Digital Converter IC Chip LQFP-48

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD7485BSTZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LQFP-48
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AD7485BSTZ 14-Bit 1M Sampling Rate SAR Analog to Digital Converter IC Chip LQFP-48

Description
Part Number: AD7485BSTZ Number Of Bits: 14
Sampling Rate (Per Second): 1M Architecture: SAR
Voltage - Supply, Analog: 5V Operating Temperature: -40°C ~ 85°C

AD7485BSTZ Integrated Circuit Chip 14-Bit SAR Analog To Digital Converters LQFP-48
Product Description
AD7485BSTZ is a 14-bit, high speed, low power, successive-approximation ADC. The part features a serial interface with throughput rates up to 1 MSPS. The part contains a low-noise, wide bandwidth track/hold amplifier, which can handle input frequencies in excess of 10MHz.
Specifications
Specification Value
Mounting Style SMD/SMT
Package / Case LQFP-48
Resolution 14 bit
Number of Channels 1 Channel
Interface Type Serial
Sampling Rate 1 MS/s
Input Type Single-Ended
Architecture SAR
Minimum Operating Temperature -40 ℃
Maximum Operating Temperature +85 ℃
DNL - Differential Nonlinearity +/- 0.75 LSB
Gain Error +/- 6 LSB
INL - Integral Nonlinearity +/- 1 LSB
Number of Converters 1 Converter
Pd - Power Dissipation 80 mW
Product Type ADCs - Analog to Digital Converters
Key Features
  • Fast Throughput Rate: 1 MSPS
  • Wide Input Bandwidth: 40 MHz
  • Excellent DC Accuracy Performance
  • Flexible Serial Interface
  • STANDBY Mode: 2 µA Max
  • Single 5 V Supply Operation
  • Internal 2.5 V Reference
  • See datasheet for additional features
